Warranty Information
Warranty
3 Years
Connector(s)
Connector A
1 - Mini HDMI (19 pin)
Connector B
1 - VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
40% to 85% RH Non-Condensing
Hardware
Active or Passive Adapter
Active
AV Input
Mini HDMI
AV Output
VGA
Ports
1
Audio
No
Industry Standards
High Speed HDMI®
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
1.2 oz [33.0 g]
Package Width
7.7 in [19.5 cm]
Package Quantity
1
Performance
Maximum Analog Resolutions
1920x1080
Maximum Digital Resolutions
1920x1080
Supported Resolutions
1920x1080 (1080p) @ 60Hz
Wide Screen Supported
Yes
MTBF
1,754,784 hours
Physical Characteristics
Weight of Product
1.2 oz [32.7 g]
Color
Black
Material
Plastic
Cable Length
7.9 in [200 mm]
Product Length
8.0 in [20.3 cm]
Product Width
1.6 in [4.0 cm]
Product Height
0.6 in [1.5 cm]
What's in the Box
Included in Package

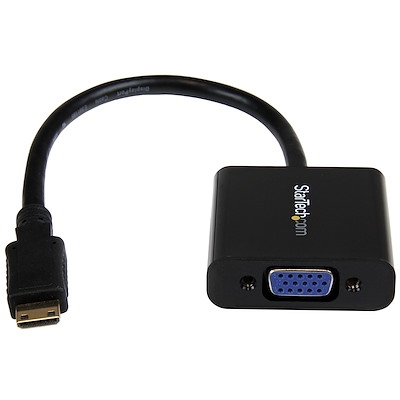

1 - Mini HDMI® to VGA Converter Adapter

STARTECH MINI HDMI TO VGA ADAPTER - ACTIVE CONVERTER FOR VIDEO CAMERA 3YR
