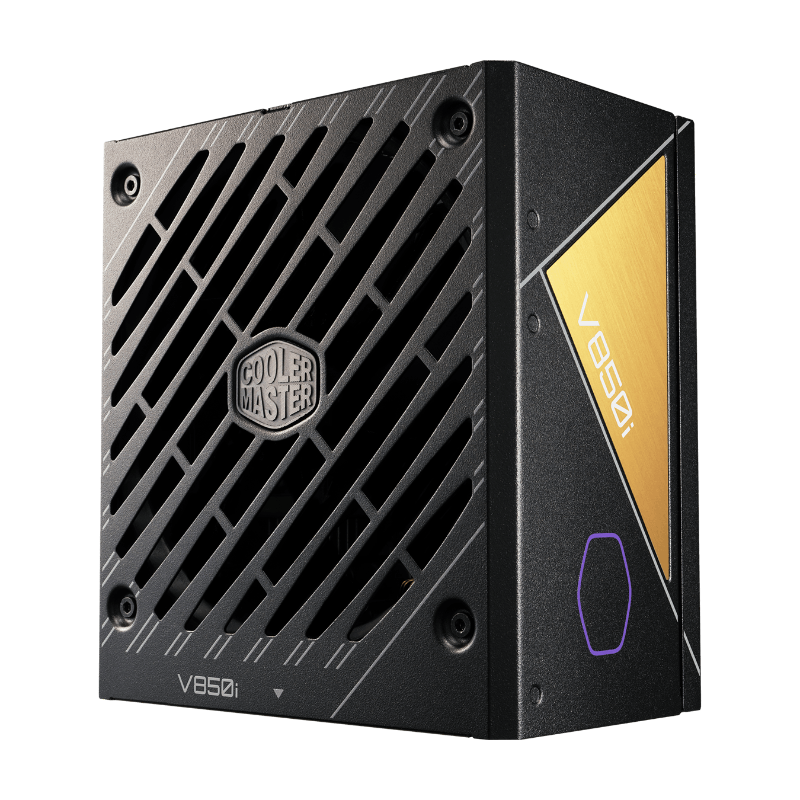

COOLER MASTER V 850W GOLD I MODULAR, ATX3.0 MPZ-8501-AFAG-BAU
SKU
396102
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
-
Semi-Digital Platform
-
80 PLUS Gold Certified
-
Fully support ATX3.0
-
STCM (Smart Thermal Control Mode)
-
Fully Modular Cable Management
-
10 Year Warranty
| Model | MPZ-8501-AFAG |
| ATX Version | ATX 12V Ver. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | FDB |
| Fan Speed | 2200 RPM |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 20ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection |
| Regulatory | UL, TUV, CE, FCC, BSMI, CCC, KC, KCC, EAC, BIS, UKCA, RoHS2.0 |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR Connector | 1 |
| USB Connectors | 1 |
| Series | V Gold Series |
| 80 Plus | Gold |
| Modular | Full Modular |
| Wattage | Above 750W |
COOLER MASTER V 850W GOLD I MODULAR, ATX3.0
