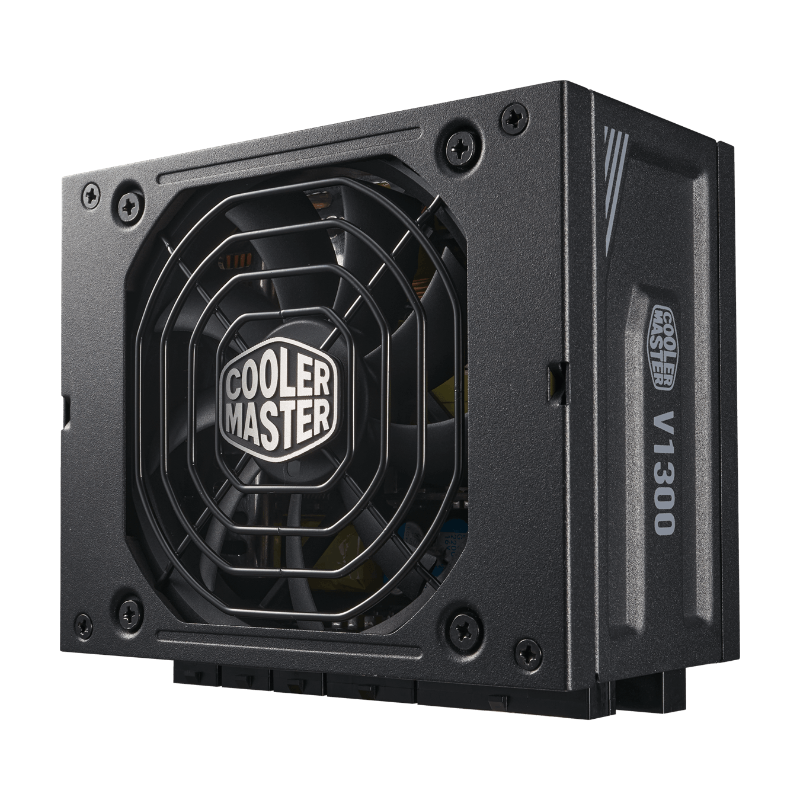

COOLER MASTER V1300 SFX 1300W, 90+ PLATINUM, ATX3.0, 92MM FAN, FULL MODULAR, 10YR WTY MPZ-D001-SFBP-BAU
SKU
405571
Brand
MPN
MPZ-D001-SFBP-BAU
Warranty
Standard Manufacturer's Warranty
$464.00
Buy Now And Earn 464 Reward Points!
INDUSTRIAL LEADING SFX POWER SUPPLY High Power Density Fully Support ATX3.0 100% Japanese Capacitors Full-bridge LLC and DC-DC Technology Fully Modular Cables 10 Year Warranty
| ATX Version | ATX3.0, SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 7.7A (Max.) |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | ≥ 94% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 60% Load |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR Connector | 1 |
| Series | V SFX Series |
| 80 Plus | Platinum |
| Modular | Full Modular |
| Wattage | Above 750W |
COOLER MASTER V1300 SFX 1300W, 90+ PLATINUM, ATX3.0, 92MM FAN, FULL MODULAR, 10YR WTY
