Startech Usb-c To Displayport Multi Monitor Splitter - Usb Type-c 3 Port Mst Hub - Usb C To 3x

SKU
254031
Brand
MPN
MSTCDP123DP
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$117.00
Buy Now And Earn 117 Reward Points!

QUICK OVERVIEW

DP Splitter - Use this adapter to connect two MSTCDP123DP

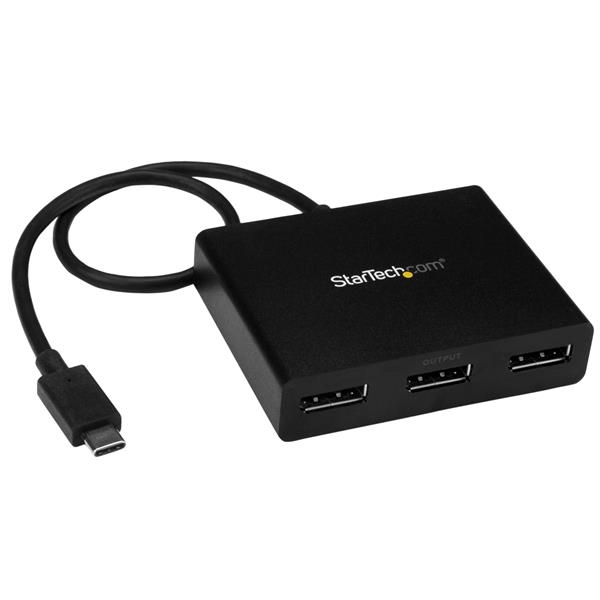

This MST hub lets you connect three DisplayPort monitors to your USB-C™ computer. MST ensures hassle-free setup by natively working on any Windows® device that supports DP alt mode over USB Type-C™, such as models of Dell Precision™, Dell XPS™ laptops and ASUS® ROG GL752.

The MST hub also works with Thunderbolt™ 3 ports to provide Thunderbolt 3 to triple DisplayPort conversion. Plus with a lower price point than docks, MST offers a multi-monitor solution that’s more cost-effective than a traditional laptop docking station.

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever. Unfortunately, this means you’re left with fewer video outputs and a small integrated screen. This MST hub solves these problems by letting you connect three displays to a single USB-C port on your computer, which makes multitasking much easier.

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity, which is perfect for creating an easy-to-dock hot-desk solution with a wireless keyboard and mouse peripheral set.

You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Increase Productivity with multiple screens

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p.

Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

productivity software displayed on three monitors

Works with any monitor, television or projector

With this MST hub, you can use separate DP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors.

Extend Your Compatibility

The MSTCDP123DP is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Performance
Wide Screen SupportedYes
Physical Characteristics
Cable Length322 mm [12.7 in]
ColorBlack
Enclosure TypePlastic
Connector(s)
Connector AUSB-C (24 pin) DisplayPort Alt Mode Male Input
Connector BDisplayPort (20 pin) Female Output
Environmental
Operating Temperature0?C to 45?C (32?F to 113?F)
Storage Temperature-20?C to 70?C (-4?F to 158?F)
Hardware
AudioYes
Chipset IDMegaChips - STDP4320
VIA/VLI - VL100
Converter TypeMST Hub
Output SignalDisplayPort
Ports3
Packaging Information
Shipping (Package) Weight0.2 kg [0.4 lb]
Performance
Maximum Digital Resolutions3840x2160 @ 30hz
Supported Resolutions

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Physical Characteristics
Product Height18 mm [0.7 in]
Product Length78 mm [3.1 in]
Product Weight86 g [3 oz]
Product Width60 mm [2.4 in]
Software
OS CompatibilityWindows 10, 8.1, 8
What's in the Box
Included in PackageMST hub
quick-start guide
