Startech Multiple Video Input With Audio To Hdmi Scaler Switcher - Hdmi / Vga / Component - Hdmi
QUICK OVERVIEW

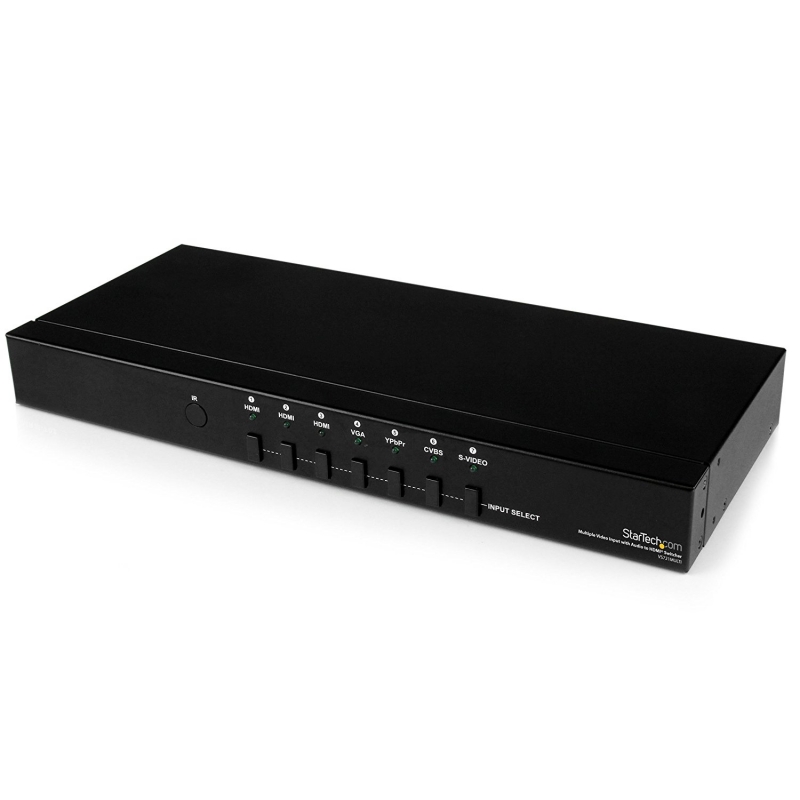

The VS721MULTI Multiple Video Input to HDMI® Switcher enables users to switch between 7 different audio-video sources to a single HDMI-equipped display.
This versatile scaler/switcher is the perfect solution for combining and scaling analog video sources (RGB/YPbPr/YCbCr) with your digital HDMI® display, eliminating the cost of upgrading individual components (i.e. DVD player, PC, VCR, etc.).
An all-in-one multimedia solution, the video converter/switcher includes support for full high definition 1080p video resolution as well as digital and analog audio. Plus, the switch features RS232 remote serial control, and includes a convenient IR remote control for switching between video sources .
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- By enabling you to share a single HDMI® display between up to seven different types of digital or analog video source, the switcher/converter offers an all-in-one multimedia switching solution
- The switcher/scaler features RS232 remote serial control (with software), and a convenient IR remote control that makes it easy to switch between video sources
- The switcher/converter maximizes compatibility with A/V devices, by converting and scaling analog video sources (e.g. VGA, Component, Composite, S-Video) to an HDMI® Display
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Female |
| Component Video (3 x RCA) Female | |
| Composite Video (1 x RCA) Female | |
| HDMI (19 pin) Female | |
| RCA Female | |
| S-Video (4 pin, Mini-DIN) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Connector B | HDMI (19 pin) Female |
| Environmental | |
| Humidity | 0% to 95% RH Non-Condensing |
| Operating Temperature | 0?c to 70?c (32?F to 158?F) |
| Storage Temperature | -20?c to 85?c (-4?F to 185?F) |
| Hardware | |
| Audio | Yes |
| Cabling | HDMI |
| Industry Standards | High Speed HDMI?, HDCP |
| Output Signal | HDMI |
| Ports | 7 |
| Indicators | |
| LED Indicators | 1 - HDMI |
| 2 - HDMI | |
| 3 - HDMI | |
| 4 - VGA | |
| 5 - YPbPr | |
| 6 - CVSB | |
| 7 - S-VIDEO | |
| Packaging Information | |
| Shipping (Package) Weight | 2.7 kg [6 lb] |
| Performance | |
| Maximum Analog Resolutions | VGA: 1920x1200YPbPr: 1920x1080 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | Support VGA mode640x480, 720x400, 800x600, 848x480, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1440x1050, 1600x1200, 1680x1050, 1920x1080, 1920x1200 Support YPbPR mode720x480, 720x576, 720x480, 720x576, 1280x720, 1920x1080, 1920x1080 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 45 mm [1.8 in] |
| Product Length | 384 mm [15.1 in] |
| Product Weight | 1800 g [63.5 oz] |
| Product Width | 173 mm [6.8 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows? Server 2008 R2, 2003(32/64) |
| What's in the Box | |
| Included in Package | instruction manual |
| IR remote control | |
| mounting kit | |
| multiple format to HDMI audio video switch | |
| RS-232 control software CD | |
| RS232 serial cable (6 ft.) | |
| universal power adapter (NA, EU, UK, AU) | |
The VS721MULTI Multiple Video Input to HDMI® Switcher enables users to switch between 7 different audio-video sources to a single HDMI-equipped display.
This versatile scaler/switcher is the perfect solution for combining and scaling analog video sources (RGB/YPbPr/YCbCr) with your digital HDMI® display, eliminating the cost of upgrading individual components (i.e. DVD player, PC, VCR, etc.).
An all-in-one multimedia solution, the video converter/switcher includes support for full high definition 1080p video resolution as well as digital and analog audio. Plus, the switch features RS232 remote serial control, and includes a convenient IR remote control for switching between video sources .
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
