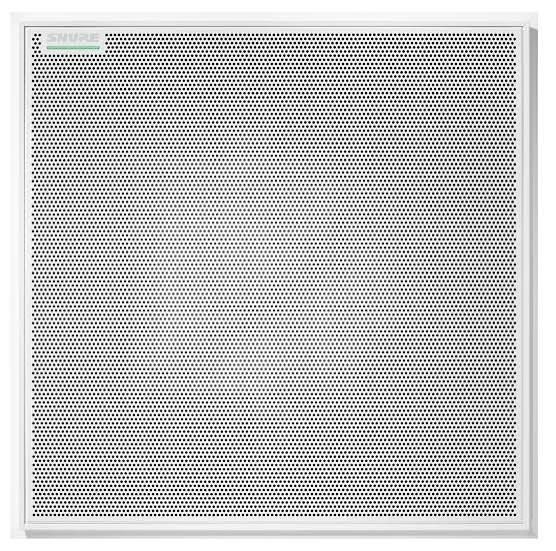

Shure (Mxa925W-S-60Cm) Ceilingarray Microphone, White, Square, 60CM, Medium To Large Rooms MXA925W-S-60CM
SKU
448473
Brand
MPN
MXA925W-S-60CM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$7,483.00
Buy Now And Earn 7483 Reward Points!
The MXA925 Ceiling Array Microphone delivers top-tier audio capture for conferencing and sound reinforcement, featuring advanced AI-enabled onboard IntelliMix® DSP for natural speech and echo cancellation. With dual RJ45 network connectivity, ShureCloud remote management, and certifications for Microsoft Teams and Zoom Rooms, it ensures flexible, seamless integration and enterprise-ready performance for any collaboration space.
Square variance comes with white or black colour
2 years manufacturing warranty
Square variance comes with white or black colour
2 years manufacturing warranty
| Latency | Does not include Dante latency Direct outputs (Automatic coverage off) 13 ms Automix output (AI AEC on) 47 ms Automix output (AI deverb on, AI AEC on or off) 90 ms Automix output (AI denoiser on, AI AEC and AI deverb on or off) 93 ms |
| Self Noise | 18.24 dB SPL-A |
| Maximum SPL | Relative to 0 dBFS overload 95.74 dBSPL |
| Sensitivity | at 1 kHz −1.74 dBFS/Pa |
| Channel Count | Automatic coverage on - 2 total channels (1 output, 1 AEC reference in channel) Automatic coverage off - 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel) Sampling Rate - 48 kHz Bit Depth - 24 |
| Coverage Type | Automatic or steerable |
| Dynamic Range | 77.5 dB |
| Plenum Rating | MXA925-S UL2043 (Suitable for Air Handling Spaces) MXA925-R Not rated |
| Connector Type | Two RJ45 connectors |
| Dust Protection | IEC 60529 IP5X Dust Protected |
| Control Software | Designer or web application |
| Power Consumption | 12.5 W maximum |
| Cable Requirements | Cat5e or higher (shielded cable recommended) |
| Frequency Response | 125 Hz to 20 kHz |
| Power Requirements | Power over Ethernet (PoE), Class 0 |
| Microphone Elements | 113 MEMS |
| Signal-to-Noise Ratio | Ref. 94 dBSPL at 1 kHz 75.76 dB A-weighted |
| Digital Signal Processing | Automatic mixing, AI acoustic echo cancellation, noise reduction, AI denoiser, automatic gain control, compressor, delay, AI deverb, equalizer (4-band parametric), mute, gain (140 dB range) |
| Storage Temperature Range | −29°C (−20°F) to 74°C (165°F) |
| Operating Temperature Range | −6.7°C (20°F) to 40°C (104°F) |
The MXA925 Ceiling Array Microphone delivers top-tier audio capture for conferencing and sound reinforcement, featuring advanced AI-enabled onboard IntelliMix® DSP for natural speech and echo cancellation. With dual RJ45 network connectivity, ShureCloud remote management, and certifications for Microsoft Teams and Zoom Rooms, it ensures flexible, seamless integration and enterprise-ready performance for any collaboration space.
