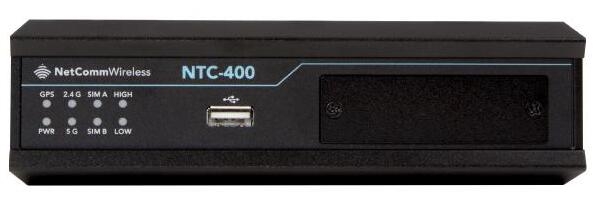

• Netcomm Wireless NTC-400 Series Router
• Wi-Fi antennas(2)
• Cellular antennas(2)
• Wall mounting brackets
• Wall mountings bracket screws
• 8-way terminal connector
• Quick start guide

Specifications

Cellular Bands

NTC-402

LTE Bands:

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 18 (850 MHz)
• Band 19 (850 MHz)
• Band 21 (1500 MHz)
• Band 28 (700 MHz)
• Band 38 (2600 MHz)
• Band 39 (1900 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)

WCDMA Bands:

• Band 1 (2100 MHz)
• Band 5 (850 MHz)
• Band 6 (800 MHz)
• Band 8 (900 MHz)
• Band 9 (1700 MHz)
• Band 19 (800 MHz)

TD-SCDMA Bands:

• Band 39 (1900 MHz)

Peak Data Speed

• 300 Mbps downlink
• 50 Mbps uplink
• LTE Category 6

Antenna Connectors

• 2 x SMA connectors for 3G/4G antennas
• 1 x SMA connector for active GPS antenna
• 2 x Reverse SMA connectors for Wi-Fi antennas

Antennas

2 x Dual band Wi-Fi antennas

• 3 dBi gain @ 2.4 GHz
• 5 dBi gain @ 5 GHz

Interfaces

3 x 1000 Base-T Ethernet RJ45 port

• 1 x LAN/WAN port
• 2 x LAN ports

Concurrent Dual Band Wi-Fi with 802.11n 2T2R (2.4 GHz) and 802.11ac 2T2R (5 GHz)

I/O terminal block providing:

• 1 x RS-232 Serial (TX and RX only) interface via I/O terminal block
• 2 x Digital input
• 1 x Digital output
• 1 x Ignition sense

1 x USB port

GPS

• GPS
• GLONASS

Sim Card Reader

• 1 x SIM card slot

Wi-Fi Functions

Wi-Fi Operation

• AP Router
• WDS
• WDS Hybrid Modes

Wi-Fi Security

• WEP
• WPA
• WPA2
• WPA-PSK
• WPA2-PSK
• 802.1x

WAN Functions

• 3G/4G WAN
• 3G/LTE IPv4, IP Passthrough
• Wi-Fi WAN

Network & Routing

Routing

• Static & Dynamic routing
• RIP (v1/v2)
• OSPF
• BGP

Port forwarding

• Virtual server/computer
• DMZ Host
• Special AP & ALG
• PPTP/L2TP/IPSec Passthrough

QoS

• Policy-based Bandwidth Control
• Packet Flow Prioritization

VLAN

• Port-based
• Tag-based

Security

VPN Tunnelling

• PPTP
• L2TP
• GRE
• IPSec tunnel termination (for up to 8 tunnels)
• OpenVPN

VPN Scenario (dependent on VPN Tunnel type)

• Site to Site
• Site to Host
• Host to Site
• Host to Host
• Hub and Spoke
• Dynamic VPN
• Tunnelling with Full Tunnel
• Tunnel Failover

Firewall

• SPI Firewall with stealth mode, IPS
• Access Control
• MAC Address Control
• URL Blocking
• Packet / Content Application Filters

Authentication

• Captive Portal
• MAC Authentication

Field Communication

Virtual COM

• RFC 2217
• TCP Client
• TCP Server
• UDP Server
• UDP Client

Service

Cellular toolkit

• SMS
• Data Usage
• SIM PIN
• USSD
• Network Scan

Event notification / triggering

Location tracking

• GPS
• Track Viewer

Power control

• Ignition sense
• Low voltage sense

Administration

Configuration and Management

• Web interface
• Telnet CLI
• SSH CLI
• Command script
• TR-069
• SNMP (v1/v2/v3)

System Operation

• MMI
• System Information
• System Time
• System Log
• Backup and Restore
• Reboot and Reset

FTP

• FTP Server/SFTP
• User Account

Diagnostic

• Packet Analyzer
• Diagnostic Tools

Storage and Logging

• 1 x USB port
• 1 x Embedded 8GB storage

Power

Power input range

• DC 9 V – 36 V

Dimensions

Without mounting kit

• 160 mm (L) x 125 mm (W) x 47 mm (H)

With mounting kit

• 200 mm (L) x 125 mm x (W) x 50 mm (H)

Environmental

Operating temperature range

• -30 °C – 70 °C

Storage temperature range

• -40 °C – 85 °C

Humidity

• 10% – 95% (non-condensing)

Certifications
