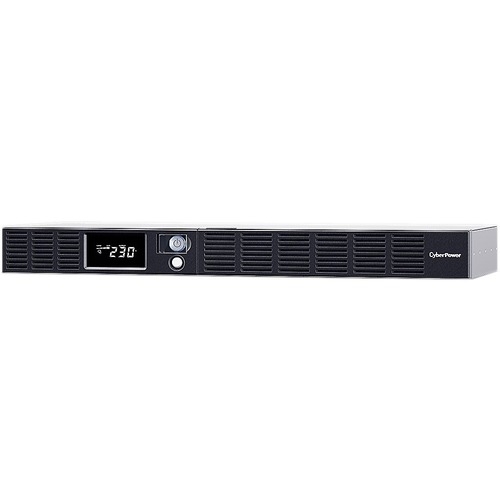

CyberPower Office Rackmount OR600ERM1U-AU Line-interactive UPS - 600 VA/360 W - Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Single Phase - Serial Port OR600ERM1U-AU
SKU
397161
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
CyberPower Office Rackmount OR600ERM1U-AU Line-interactive UPS - 600 VA/360 W - Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Single Phase - Serial Port
CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office and server room environment to ensure a reliable backup power supply during power failures.The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Features
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
Controls/Indicators
Status Indicators | LED Indicators: Power On |
Interfaces/Ports
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Environmental Conditions
Thermal Dissipation | 20 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 1.50 km |
Miscellaneous
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | GreenPower UPS |
RoHS |
Management
Network Management | SNMP/HTTP Remote Monitoring |
Alarm | UPS Fault |
Battery Mode | |
Low Battery | |
Overload |
Technical Information
Application/Usage | Tablet PC |
Office | |
Workstation | |
Server Room | |
Computer Peripheral | |
Network Device | |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
EMI/RFI Noise Filter | Yes |
AVR | Yes |
Number of Battery & Surge Outlets | 4 |
Number of Surge-only Outlets | 2 |
Transfer Time | 4 ms |
Receptacle Detail | 6 x IEC 60320 C13 |
Physical Characteristics
Weight (Approximate) | 7.80 kg |
Form Factor | Rack-mountable |
Height | 43.2 mm |
Width | 431.8 mm |
Depth | 236.2 mm |
Product Color | Silver |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Surge Energy Rating | 405 J |
Waveform Type | Simulated Sine Wave |
Input Voltage Range | 165 V AC - 271 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Battery Information
Battery Life | 2 Year |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 13 Minute |
Backup/Run Time (Full Load) | 4 Minute |
Battery Characteristics | Sealed |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 8 Hour |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | OR600ERM1U-AU |
Manufacturer Website Address | http://www.cyberpower.com/au |
Manufacturer | CyberPower Systems, Inc |
Product Model | OR600ERM1U-AU |
Product Name | Office Rackmount OR600ERM1U-AU 600VA Rack-mountable UPS |
Product Line | Office Rackmount |
Brand Name | CyberPower |
