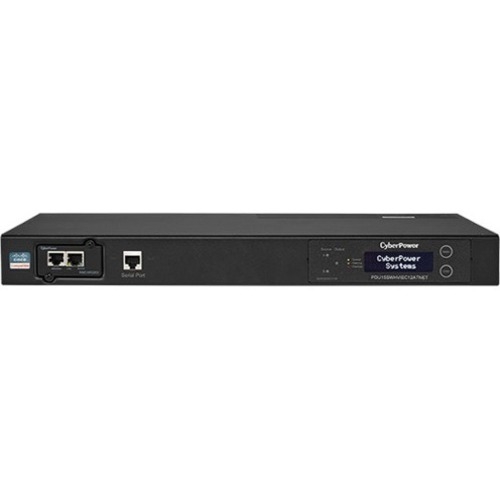

CyberPower PDU20SWHVCEE10ATNET PDU - Switched - IEC 60309 16A - 2 x IEC 60320 C19, 8 x IEC 60320 C13 - 16 A - 230 V AC Input - 230 V AC Output - 1U Network (RJ-45) - Horizontal - Rack-mountable PDU20SWHVCEE10ATNET

SKU
399675
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

CyberPower PDU20SWHVCEE10ATNET PDU - Switched - IEC 60309 16A - 2 x IEC 60320 C19, 8 x IEC 60320 C13 - 16 A - 230 V AC Input - 230 V AC Output - 1U Network (RJ-45) - Horizontal - Rack-mountable

CyberPower Automatic Transfer Switches PDUs with dual input for power provide redundant and increased reliability for critical devices with a single power plug. Users can define the preferred input power source. When a selected source is unstable or unavailable, the ATS PDU will switch to the second power source to constantly provide power to connected devices. The entire ATS PDU series are designed with LED and LCD interfaces for users to easily observe power status and device load. On-site power management is accomplished as users can configure power settings, via LCD interface, according to local power condition. Available in both switched and metered/monitored configurations, users have a broad base of options to select the ATS PDU that best fits their needs.

Interfaces/Ports
Network (RJ-45)Yes
Management
Management

    Protocols:

    • TCP/IP
    • UDP
    • DHCP
    • SNMP v1/v3
    • HTTP(s)
    • Telnet
    • SSH
    • SSL
    • NTP
    • SMTP
    • IPv4
    • IPv6 (with Optional RMCARD)
Miscellaneous
Environmentally FriendlyYes
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current16 A
Input Voltage Range200 V AC - 240 V AC
Output Voltage Range200 V AC - 240 V AC
General Information
Product TypePDU
Manufacturer Part NumberPDU20SWHVCEE10ATNET
Manufacturer Website Addresshttp://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product ModelPDU20SWHVCEE10ATNET
Product NameATS PDU20SWHVCEE10ATNET 10-Outlet PDU
Product SeriesATS
Brand NameCyberPower
Physical Characteristics
Weight (Approximate)6 kg
Mount TypeRack-mountable
Rack Height1U
Height44 mm
Width433 mm
Depth236 mm
Mounting OrientationHorizontal
Technical Information
Plug/Connector TypeIEC 60309 16A
PhaseSingle Phase
Receptacle TypeIEC 60320 C19
IEC 60320 C13
PDU TypeSwitched
Receptacle Detail8 x IEC 60320 C13
2 x IEC 60320 C19
Plug/Connector Detail2 x IEC 60309 16A
