CyberPower PDU41004 PDU - Switched - IEC 60320 C14 - 8 x IEC 60320 C13 - 15 A - 120 V AC, 230 V AC Input - 1U Network (RJ-45) - Horizontal/Vertical - Rack-mountable PDU41004

Name: CyberPower PDU41004 PDU - Switched - IEC 60320 C14 - 8 x IEC 60320 C13 - 15 A - 120 V AC, 230 V AC Input - 1U Network (RJ-45) - Horizontal/Vertical - Rack-mountable PDU41004
Brand: Cyberpower
SKU: 397653
Availability: OutOfStock

SKU

397653

Brand

Cyberpower

Manufacturer Link

Warranty

Standard Manufacturer's Warranty

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

CyberPower PDU41004 PDU - Switched - IEC 60320 C14 - 8 x IEC 60320 C13 - 15 A - 120 V AC, 230 V AC Input - 1U Network (RJ-45) - Horizontal/Vertical - Rack-mountable

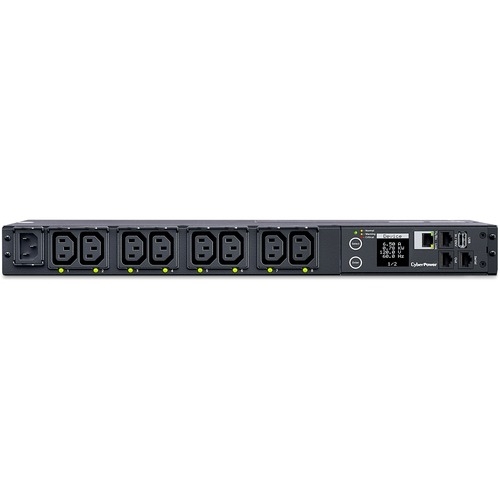

The CyberPower PDU41004, a 1U rackmount switched power distribution unit (PDU), provides 100-240V 15A output via 8 IEC-320 C13 receptacles from a single IEC-320 C14 input power plug.

Delivers AC power to servers, equipment, and connected devices
Switch-free design safeguards against accidental power shutdown
Provides local and remote control for individual and multiple outlets
Enables offsite and onsite tracking of PDU vitals
Provides immediate updates about power events via email, SMS text, or SNMP traps
Includes 3-year limited warranty

Guides & Documents

Management

IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD

Interfaces/Ports

USB	Yes
Network (RJ-45)	Yes

Miscellaneous

Additional Information	Temperature: 32 °F to 131 °F (0 °C to 55 °C) Maximum Storage Elevation: 50,000 ft (15,000 m) Operating Relative Humidity: 0% - 95% Non-condensing Maximum Operating Elevation: 11,480 ft (3,500 m) Maximum Current: 15A (derated to 12A) Maximum Input Current: 15A (Derated to 12A) Network Connection: RJ45 (Ethernet), RJ45 (COM Port) Updateable firmware: Yes, via USB or Ethernet Modular Expandability (Cascading): Yes, via RJ45 Outlet switching: Yes Environmental Sensor: Optional, via RJ45 Multifunction Meter Readout: Power Control Display External Site Ground Pin: Yes Cord Retention Tray/Cord Organizers: Yes LCD Screen: Voltage Frequency Load Current HW/FW Version Network information LED Indicators: Tx/Rx LINK Normal/Warning/Critical Status
Environmentally Friendly	Yes
Energy Star	No

Power Description

Input Voltage	230 V AC
Input Voltage	120 V AC
Input Current	15 A
Input Voltage Range	100 V AC - 240 V AC
Output Voltage Range	100 V AC - 240 V AC

General Information

Product Type	PDU
Manufacturer Website Address	http://www.cyberpower.com/au
Manufacturer	CyberPower Systems, Inc
Product Model	PDU41004
Product Name	PDU41004 8-Outlet PDU
Brand Name	CyberPower

Technical Information

Plug/Connector Type	IEC 60320 C14
Phase	Single Phase
Receptacle Type	IEC 60320 C13
PDU Type	Switched
Receptacle Detail	8 x IEC 60320 C13
Plug/Connector Detail	1 x IEC 60320 C14

Physical Characteristics

Weight (Approximate)	2.09 kg
Length	433.1 mm
Mount Type	Rack-mountable
Rack Height	1U
Cord Length	3.05 m
Height	44.5 mm
Depth	112 mm
Mounting Orientation	Horizontal/Vertical
Product Color	Black
