STARTECH.COM 1 PORT LOW PROFILE NATIVE RS232 PCIE SERIAL CARD W/16550 UART 2YR PEX1S553LP

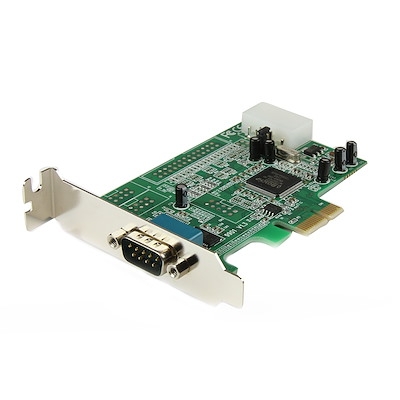

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
| Product Description | StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX1S553LP) - serial adapter - PCIe - RS-232 |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express |
| Ports | RS-232 |
| Data Link Protocol | RS-232 |
| System Requirements | Microsoft DOS, Linux, Microsoft Windows 2000, Microsoft Windows 95/98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows CE 5.0, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Apple MacOS X 10.4 - 10.7, Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Manufacturer Warranty | Limited lifetime warranty |
