STARTECH.COM 3 PORT PCIe PARALLEL SERIAL COMBO CARD, PARALLEL(1),RS232 SERIAL PORT(2),2YR PEX2S5531P
- Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
- One parallel port with data transfer rate up to 1.5 Mbps
- Compliant with PCI Express base specifications revision 1.0a

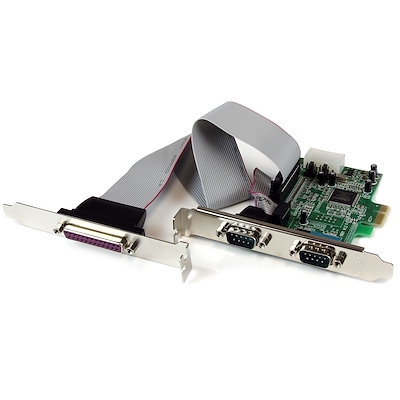

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Product Description | StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - PCIe 2x Serial 1x Parallel RS232 Adapter Card (PEX2S5531P) - parallel/serial adapter - PCIe |
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express |
| Dimensions (WxDxH) | 12 cm x 10.5 cm x 2 cm |
| Weight | 140 g |
| Cabling Type | Serial RS-232 |
| System Requirements | Microsoft DOS, Linux, Microsoft Windows 2000, Microsoft Windows 95/98 Second Edition, Apple MacOS X 10.x, Microsoft Windows XP Embedded, Microsoft Windows CE 5.0, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Manufacturer Warranty | Limited lifetime warranty |
