STARTECH.COM 4 PORT PCIE RS232 SERIAL CARD WITH 16550 PEX4S553
SKU
307903
Brand
MPN
PEX4S553
Warranty
Standard Manufacturer's Warranty
$182.00
Buy Now And Earn 182 Reward Points!
- Four high speed RS232 serial ports, with support for data transfer rates up to 128000bps
- 256-byte deep FIFO per transmitter and receiver
- Native single-Chip, single lane PCI Express

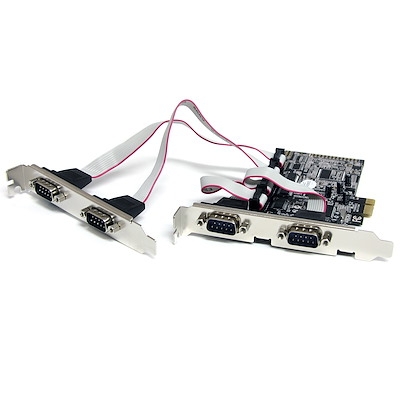

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Product Description | StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART - Low Profile Serial Card (PEX4S553) - serial adapter - PCIe 1.1 - 4 ports |
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| Dimensions (WxDxH) | 1.9 cm x 13 cm x 12 cm |
| Weight | 80 g |
| Ports Qty | 4 ports |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 128 Kbps |
| Processor | 1 x MosChip Semiconductor MCS9904CV-AA |
| System Requirements | Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Manufacturer Warranty | Limited lifetime warranty |
