DESCRIPTION

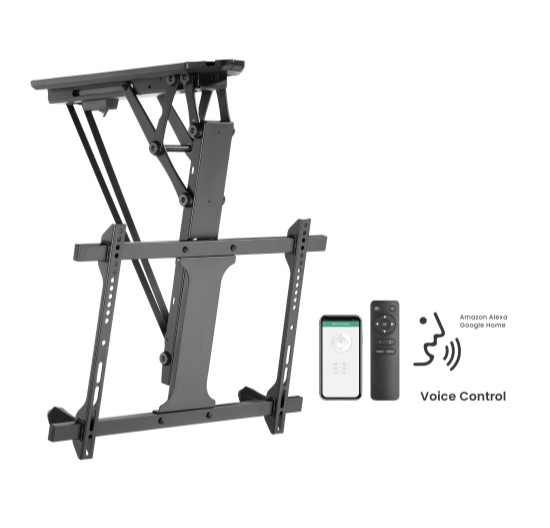

Brateck PLB-M0546AI SMART FLIP DOWN TV CEILING MOUNT POWERED BY TUYA Support most 32" ~ 70" TVs (Black)

FEATURES
●Powerful Motor: more stable, strong and durable
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●App Remote Control: remote powered by Tuya App
●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
●Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command

SPECIFICATIONS
Product Category: Motorized TV Ceiling Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet,Bracket Arm THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 725x664x516mm (28.5"x26.1"x20.3")
Fit Screen Size: 32"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x100,200x200,300x200,200x400,400x200,300x300,400x300,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 35kg (77lbs)
Strength Tested: 3 Times Approved
Profile: 108mm (4.3")
Tilt Range: 0~-75°
Screen Level: +2°~-2°
Screen Freely Tilting: No
Installation: Ceiling Mounted
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Cable Management: Yes
Anti-theft: No
Power Supply: Input：AC 100~240V,50/60Hz；Output：DC 24V, 1.5A
Power Cord Length: 1.5m (4.9ft)
Controller Type: Application Control,Radio Frequency(RF) Remote
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Certification: CE,FCC,RoHS
