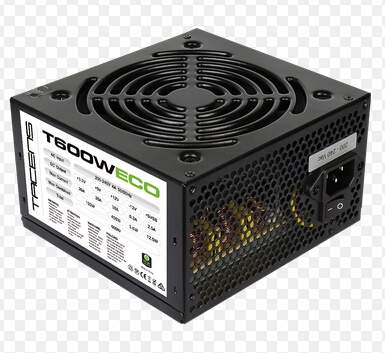

Aerocool Power Supply: Tacsens 600w Eco T600w-eco

SKU
240165
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

The Tacens T600w PSU represents the best value for money of any power supply by Aerocool. It is the best choice for budget system builders offering the most suitable specifications, reliable quality, a silent 12cm fan, and black powdercoated casing.

  • The most valuable power supply for entry-level system builder.
  • Compatible with ATX 12V 2.3.
  • High-end SECC with black powdercoated case.
  • Silent 12cm fan with smart fan speed control.
  • Supports C6/C7 power saving mode on Intel Haswell CPU.
  • Powerful single +12V rails offer the most compatible DC output to support high-end graphic card and CPU.
  • Long cable length at least 450mm supports high-end case with "Bottom" PSU position.

OPP/OVP/UVP/SCP electrical protection included:

  • Over Voltage Protection: The +5V/+12V/+3.3V DC output are protected against the over voltage condition. Maximum value can't be over 6.5V at 5V terminal and 15.5V at 12V, 4.3V at 3.3V.
  • Over Power Protection: The power supply will be shutdown and latch off when output power is 105%~150%.
  • Under voltage protection: In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown state when +12V,+5V & +3.3V outputs under 60% of it's maximum value.
  • Short Circuit Protection: Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will auto-recovery.

Model Name: T600

  • Cables:
    • 1 x 20 + 4 PIN
    • 1 x 4 + 4 PIN
    • 2 x 4 PIN
    • 2 x SATA
    • 1 x FDD
    • 1 x 6PIN
  • Power Specifications:
    • AC Input: 230VAC 4A 47-63Hz
    • DC Output:Max Current/Wattage
      • +3.3V: 18A/120W
      • +5V: 15A/120W
      • +12V: 14A/324W
      • -12V: 0.3A/3.6W
      • +5Vsb: 2.5A/12.5W
      • Total Combined Wattage: 600W
  • Environmental Requirements:
    • Operating / Storage Temperature Range:
      • Operating ambient: 0ºC min ~ +40ºC max
      • Non operating ambient: -20ºC ~ +60ºC
    • Humidity (non condensing):
      • Operating ambient: 10% ~ 90% relative humidity
      • Non operating ambient: 5% ~ 95% relative humidity
    • Altitude:
      • Operating ambient: 0 to 10,000 ft
      • Non operating ambient: 0 to 50,000 ft
  • Noise Level Output:Loading(%) / Noise (dBA)
    • 20% / 18.7dBA
    • 40% / 19.2dBA
    • 60% / 21.8dBA
    • 80% / 26.2dBA
    • 100% / 30.8dBA
