D-link Powerline Av2 Wireless Ac1200 Starter Kit Dhp-w611av

Rated 4.9/5 based on 0 customer reviews

SKU: 267642

Brand: D-Link

Manufacturer Link

MPN: DHP-W611AV

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $262.00

Special Price $228.00

Buy Now And Earn Reward Points!
Qty:

Wi-Fi with a backbone

Wi-Fi sends signals through the air. Powerline sends signals through the electrical wiring in your walls. Together they create Power-Fi™, a hybrid technology that creates the most robust home network possible. By turning the two technologies into one, dead spots are eliminated and range and throughput are extended.
Power-Fi gives you the power to stream content and media to every corner of your home like never before.



AC1200 speeds up to 300Mbps (2.4GHz) + 867Mbps (5GHz).1 Powerline speeds up to 1000 Mbps2 using HomePlug AV2 technology make it ideal for activities like HD media 10/100/1000 Gigabit Ethernet port for high-speed connection to wired device Plug-and-Play feature means creating a PowerLine network is simple and easy
dhp-w6011av_passthrough

Pass through noise filter

The integrated passthrough socket ensures no power outlet is going to waste and the built-in noise filter eliminates electrical signal noise for powerful transmission performance.



How it works

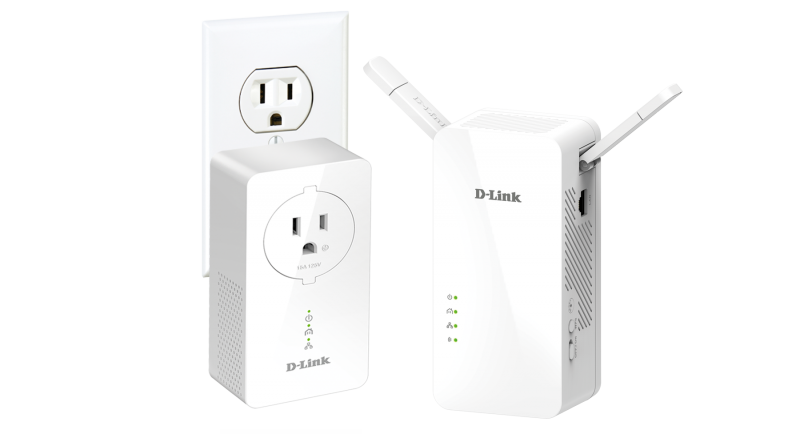

With the PowerLine Wireless AC1200 Gigabit Starter Kit, getting whole-home coverage is fast and easy.

Simply connect the PowerLine adapter to your router's Ethernet port and plug it into a power outlet to turn every other outlet in your home into a possible network connection.

Plug the wireless extender into an outlet in a different part of your home to extend your Wi-Fi or wired network to the hard-to-reach areas of your home like upstairs bedrooms, basements and outdoor patios.

dhp-w6011av-av2tech



Advanced HomePlug AV2Technology



The D-Link PowerLine Wireless AC1200 Gigabit Starter Kit (DHP-W611AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilizing your home's existing electrical wiring as a reliable high-speed network, the DHP-W611AV makes it easy to connect computers, gaming consoles, and media players to your network without additional cables. The DHP-W611AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.



Easy setup



Simply plug and play. No need to configure or to remember passwords.
A simple push of a button will get your network secured in minutes.

Extend your wired network

Extend your Powerline network by adding up to 6 adapters in total. Backward compatible with PowerLine AV, AV+.3

Technical Specifications (DHP-P610AV PowerLine AV1000 Gigabit Passthrough Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps

Network Interface

  • 10/100/1000 Ethernet port with auto MDI/MDIX

Other Interface

  • Simple Connect Button
  • Reset Button

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901

Security

  • 128-bit AES encryption

LEDs

  • Power
  • Ethernet
  • Powerline

Advanced Features

  • Power-saving mode
  • Compliant with European Energy Using Product Directive

Powerline Modulation Scheme

  • OFDM Symbol Modulation

Powerline Frequency Band

  • 2 to 86 MHz

Data Rate

  • Powerline: Up to 1000 Mbps (PHY rate)2
  • Ethernet: 10/100/1000 Mbps (auto negotiation)

Physical

Dimensions

  • 114 x 59 x 38 mm (4.49 x 2.32 x 1.50 inches)

Weight

  • EU Type: 188 g (6.63 ounces)

Passthrough Power Socket

  • EU Type: 250 V/16 A Maximum

Power Input

  • EU Type: 100 to 250 V AC, 50/60 Hz, 16 A

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 2.62 W
  • Network Standby: 2.23 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL

Technical Specifications (DHP-W610AV PowerLine AV1000 Wi-Fi AC Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps2

Network Interfaces

  • 10/100/1000 Ethernet LAN port with auto MDI/MDIX
  • 802.11ac WLAN

Other Interface

  • Simple Connect button
  • WPS
  • Reset button

Wireless LAN

  • 802.11ac/n/g/a standards
  • Wireless speed3:
    • 5 GHz - up to 867 Mbps
    • 2.4 GHz - up to 300 Mbps
  • WPA/WPA2 (Wi-Fi Protected Access)

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901
  • IEEE 802.11ac/n/g/a

Security

  • Powerline: 128-bit AES Encryption
  • Wireless: Wi-Fi Protected Access (WPA/WPA2)

LEDs

  • Power
  • Ethernet
  • Powerline
  • Wi-Fi

Advanced Features

  • IPv6 support
  • Power-saving mode
  • PLC Quality of Service (QoS)

Physical

Dimensions

  • 140 x 68 x 50 mm (5.51 x 2.68 x 1.97 inches)

Weight

  • EU Type: 315.2 g

Power

  • Input: 100 V to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 9.22 W
  • Network Standby: 6.15 W
  • Off: 0.1 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL
  • RoHS
PowerLine Wireless AC1200 Gigabit Starter Kit
DHP-W611AV

Wi-Fi with a backbone

Wi-Fi sends signals through the air. Powerline sends signals through the electrical wiring in your walls. Together they create Power-Fi™, a hybrid technology that creates the most robust home network possible. By turning the two technologies into one, dead spots are eliminated and range and throughput are extended.
Power-Fi gives you the power to stream content and media to every corner of your home like never before.

Pass through noise filter

The integrated passthrough socket ensures no power outlet is going to waste and the built-in noise filter eliminates electrical signal noise for powerful transmission performance.

Advanced HomePlug AV2Technology

The D-Link PowerLine Wireless AC1200 Gigabit Starter Kit (DHP-W611AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilizing your home's existing electrical wiring as a reliable high-speed network, the DHP-W611AV makes it easy to connect computers, gaming consoles, and media players to your network without additional cables. The DHP-W611AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.

Easy setup

Simply plug and play. No need to configure or to remember passwords.
A simple push of a button will get your network secured in minutes.

Extend your wired network

Extend your Powerline network by adding up to 6 adapters in total. Backward compatible with PowerLine AV, AV+.3


1 Maximum wireless signal rate derived from IEEE Standard 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link. Maximum throughput based on D-Link 802.11ac devices.

2 Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that do not follow the HomePlug PowerLine Alliance standard.

3 D-Link PowerLine AV200/AV+ Network Adapters (DHP-209AV,DHP-309AV), PowerLine AV+ Wireless N Extender (DHP-W310AV, DHP-W311AV), PowerLine AV2 2000 Gigabit Starter Kit (DHP-(701AV), and Wireless N PowerLine Router (DHP-1320) may coexist but are not compatible or interoperable with D-Link PowerLine HD Ethernet Adapters (DHP-302, DHP-303) or D-Link PowerLine HD Network Starter Kit (DHP-303).
