JACKFUSE PP10MG PWR PORT 10-WAY MOD GLASS FUSE MOD LIFETIME WARRANTY PP10MG
SKU
403589
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!

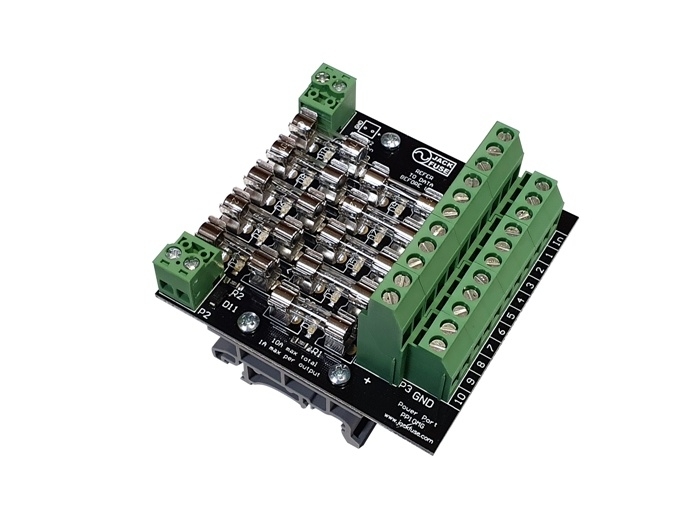

PP10MG – Modular Power Distribution Module The Power Port 10MG is a compact, traditional power distribution module with glass fuses.
The modular design is easily expanded end-to-end via edge mounted connectors.
APPLICATIONS:
- Power distribution for electronic security & access peripherals
- Scalable for small, medium or large installations
FEATURES:
- Edge connectors for expansion and flexible installation
- Ten fused outputs with status LED
- Replaceable glass fuses
- DIN rail mount
| Input voltage range | 0-28V DC |
| Max current per module | 10A |
| Max constant current per output | 2A (with 2A replacement fuse) |
| Fused outputs | 10 |
| Fuse type | 1A Normal Blow M205 |
| Mounting | DIN rail |
| Dimensions | 75 L X 75 W X 55 H (mm) |
| Country of origin | Australia |
JACKFUSE PP10MG PWR PORT 10-WAY MOD GLASS FUSE MOD LIFETIME WARRANTY
