DESCRIPTION

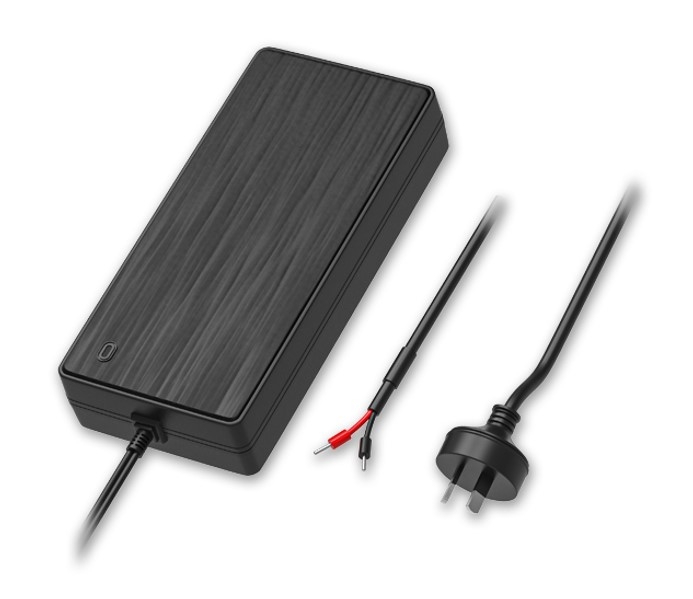

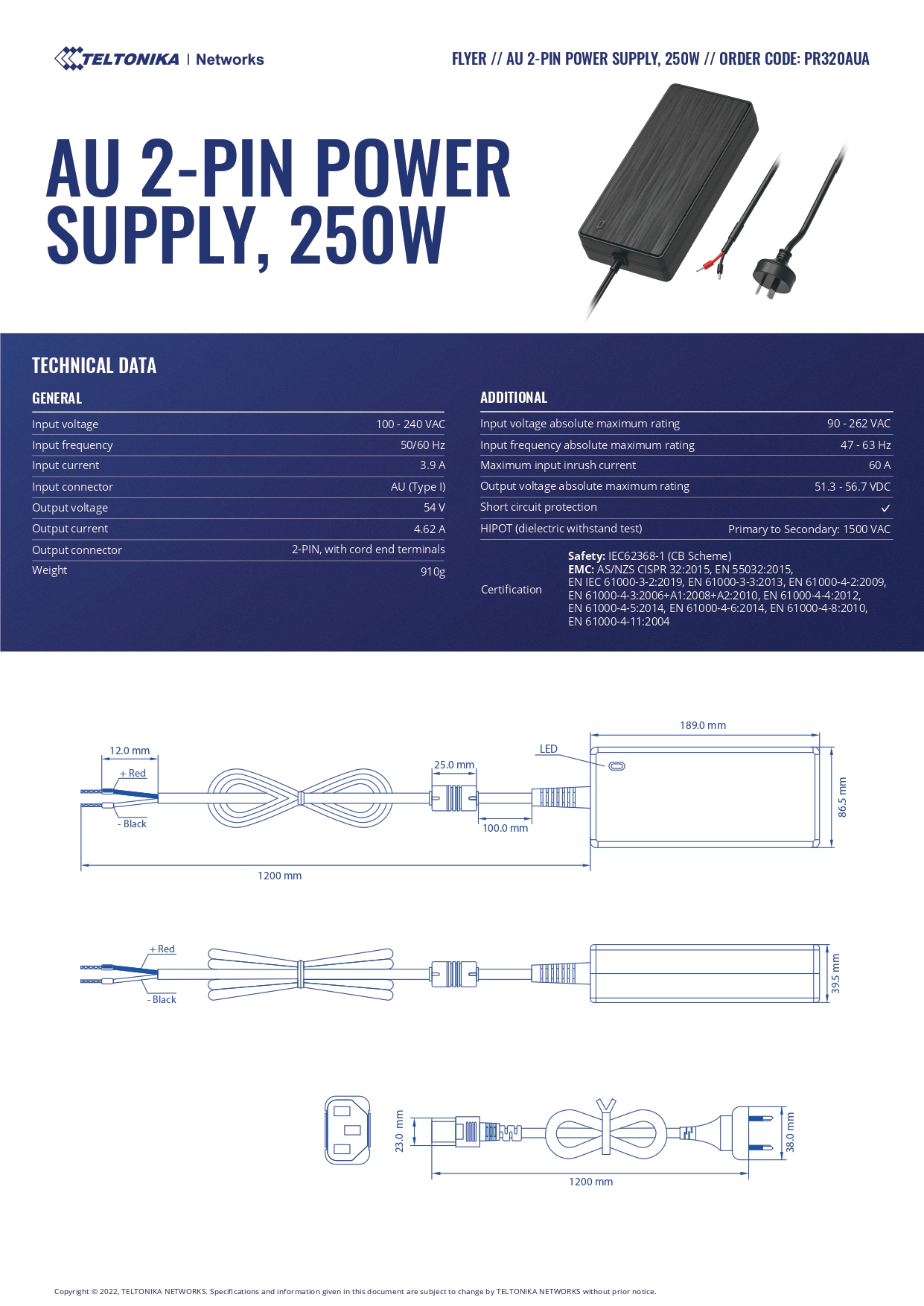

Teltonika 2 Pin AU Power Supply 250W - For use with TSW200

GENERAL

Input voltage   100 - 240 VAC
Input frequency   50/60 Hz
Input current   3.9 A
Input connector   AU (Type I)
Output voltage   54 V
Output current   4.62 A
Output connector   2-PIN, with cord end terminals
Weight   910 g

ADDITIONAL

Input voltage absolute maximum rating   90 - 262 VAC
Input frequency absolute maximum rating   47 - 63 Hz
Maximum input inrush current   60 A
Output voltage absolute maximum rating   51.3 - 56.7 VDC
Short circuit protection   ✓
HIPOT (dielectric withstand test)   Primary to Secondary: 1500 VAC
Certification
 Safety: IEC62368-1 (CB Scheme)
 EMC: AS/NZS CISPR 32:2015, EN 55032:2015,
 EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009,
 EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012,
 EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010,
 EN 61000-4-11:2004
