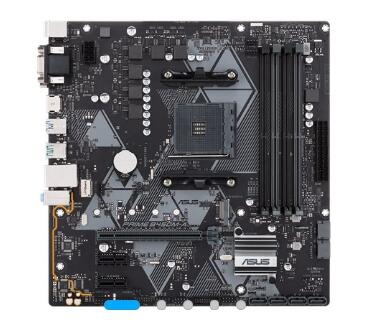

Asus Prime-b450m-a Am4 M-atx Motherboard - Amd B450 Chipset - 4x Dimm Ddr4 Up To 64 Gb - 4 X Sata

Rated 4.8/5 based on 66 customer reviews

SKU: 270244

Brand: Asus

Manufacturer Link

MPN: PRIME B450M-A

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $159.00

Special Price $139.00

Buy Now And Earn Reward Points!
Qty:

AMD AM4 mATX motherboard with Aura Sync RGB header, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2

  • Fan Xpert 2+: Flexible controls for ultimate cooling and silence, plus GPU-temperature sensing for cooler gaming
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
  • ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
ASUS PRIME B450M-A/CSM AMD Motherboard

With support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation processors, the ASUS Prime B450M-A/CSM is engineered to provide true gaming performance. Take advantage of next-generation connectivity and speeds with NVMe M.2, USB 3.1 Gen2, DDR4 compatibility, and native RAID support. 5X Protection III ensures excellent component longevity and reliability while Aura Sync RGB adds flair to your system. ASUS Fan Xpert and ASUS UEFI BIOS make tuning clicks away. Just tune to get the best cooling and the highest performance.

Tune it your way
Flexible cooling controls

Prime B450 Series motherboards offer comprehensive control over system fans, via the included Fan Expert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.

Cooler by design

Prime B450 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.




Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.

Make your memory faster

Featuring an array of trace layout tweaks that improve memory stability, PRIME B450 Series provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations – from entry-level to performance-oriented — PRIME B450 Series is a versatile all-rounder that can work or play.

Media-acclaimed UEFI BIOS

The UEFI BIOS is an early waypoint on any PC-building journey, and Prime B450 Series has one of the best in the business.




Q-Fan Control: Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.




Search Function: When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Ultrafast connectivity
USB 3.1 Gen 2 Type-A1

With backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — twice as fast as standard USB 3.1 Gen 1.

Speed up with onboard M.21

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

Native M.2/NVMe PCIe RAID Support

Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds.

AMD StoreMI

AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.

Reliable stability and compatibility
Built to last

ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

Visual beauty, virtual worlds
Upgrade to unrivalled audio1

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.




Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.




Premium Japanese-made audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Visual beauty, virtual worlds
Aura Sync

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.2 And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Brighten up your build

LED-illuminated control for PCIe slot and trace paths

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

Beyond VR ready

Prime B450 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime B450 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

Feel AMD power
AM4 socket

The AMD Ryzen processor is based on the innovative Zen core architecture and features up to eight cores and Radeon Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.

AMD B450 chipset

The AMD B450 chipset delivers high performance and flexibility with the latest AMD AM4-socket Ryzen processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.



  • CPU
    AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
  • Chipset
    AMD B450
  • Memory
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DVI-D/D-Sub ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

  • Expansion Slots
    AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD Ryzen™ with Radeon™ Vega Graphics Processor
    1 x PCIe 3.0/2.0 x16 (x8 mode) *1
    AMD B450 chipset
    2 x PCIe 2.0 x1
  • Storage
    AMD B450 chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    2 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
    ASUS LAN Guard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    AMD B450 chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
    AMD B450 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B450 chipset :
    4 x USB 2.0/1.1 port(s) (4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2
    4 x USB 3.1 Gen 1 ,
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x Aura RGB Strip Header
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x TPM header
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    Micro ATX Form Factor
    9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
  • Note
    1*Support NVMe PCIe RAID.
    2*The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
