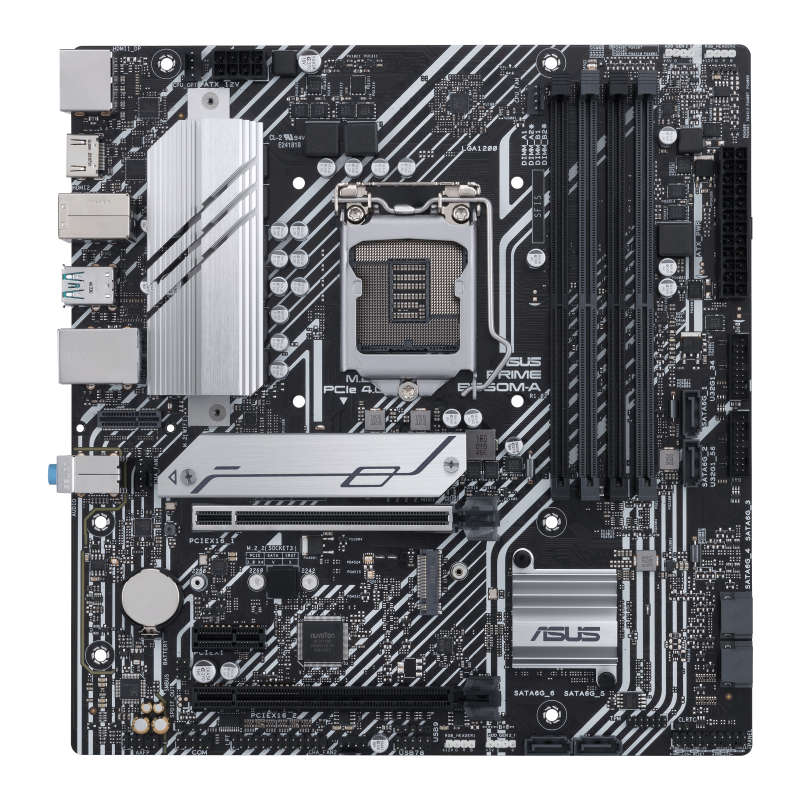

Asus PRIME-B560M-A/CSM Motherboard Intel B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel 1 Gb Ethernet, DisplayPort, dual HDMI
SKU
373985
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" | Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Chipset | Intel® B560 Chipset |
| Form Factor | microATX 24.4cm x 23.4cm |
| I/O Connectors | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A), 1 x DisplayPort, 2 x HDMI™ port, 1 x Intel® I219-V 1Gb Ethernet port, 1 x V-M.2 slot (Key E), 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Integrated CPU Graphics | 2 x HDMI™ 2.0** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| LAN | 1 x Intel® I219-V 1Gb Ethernet, ASUS LANGuard |
| Memory/Type/Bus/Max. | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* | Dual Channel Memory Architecture | Supports Intel® Extreme Memory Profile (XMP) | OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| PCI Slots | Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel®10th Gen processors support PCIe 3.0 x16 | Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. |
| Processor Support | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | Supports Intel® 14 nm CPU | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Raid | - |
| RAM Type/Bus/Max. | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* | Dual Channel Memory Architecture | Supports Intel® Extreme Memory Profile (XMP) | OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Socket | LGA1200 |
| Storage Interface | Intel®11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | Intel® B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Warranty | |
| Weight | |
| Accessories | Cables: 2 x SATA 6Gb/s cables | Miscellaneous: 1 x M.2 Rubber Package(s), 1 x M.2 SSD screw package(s), 1 x Vertical M.2 Key E bracket set, 1 x ACC Express Activation Key Card | Installation Media: 1 x Support DVD | Documentation: 1 x User manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 10 64bit |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
PRIME-B560M-A/CSM
