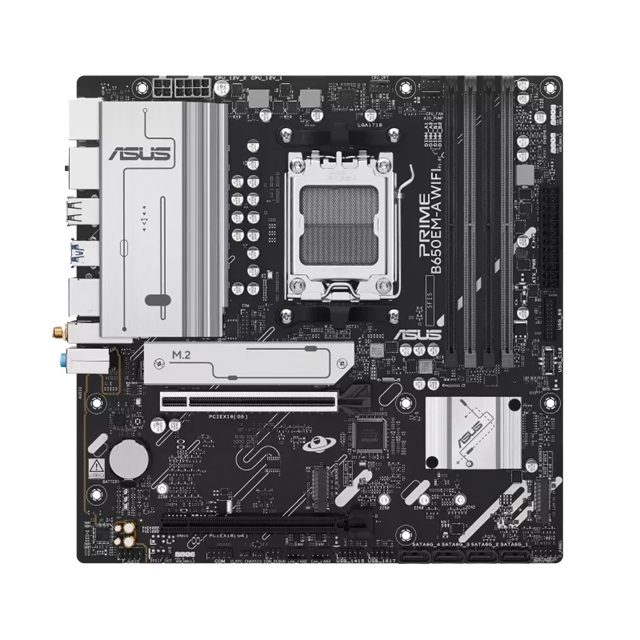

Asus AMD Prime B650Em-A WIFI (AM5) MATX Motherboard, DDR5 256GB, 1x PCIe 5.0 X16, 3x M.2 Slots, 4x Sata, Wi-Fi 6, 2.5Gb LAN, 1x HDMI, 2x DP PRIME B650EM-A WIFI
SKU
431842
Brand
MPN
PRIME B650EM-A WIFI
Warranty
Standard Manufacturer's Warranty
$208.00
Buy Now And Earn 208 Reward Points!
ASUS AMD PRIME B650EM-A WIFI (AM5) mATX Motherboard
•Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
•AM5 Socket for AMD Ryzen™ Desktop Processors
•Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB •5Gbps Type-C® support
•Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
•Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
PRIME B650EM-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
•Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
•AM5 Socket for AMD Ryzen™ Desktop Processors
•Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB •5Gbps Type-C® support
•Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
•Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
PRIME B650EM-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
| Model | PRIME B650EM-A WIFI |
| News & Updates | Socket AM5, |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Supports up to AMD 170W CPU | Chipset |
| AMD B650 Chipset | 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* | Dual channel memory architecture |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 2 x DisplayPort** |
| 1 x HDMI™ port*** | Expansion Slots |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| AMD Ryzen™ 8000 Series Desktop Processors | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | Storage |
| Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* | AMD B650 Chipset |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology |
| Ryzen™ 9000 Series Processors: RAID 0/1/5/10 | Ryzen™ 8000 Series Processors: RAID 0/1 |
| Ryzen™ 7000 Series Processors: RAID 0/1/10 | Ethernet |
| 1 x Realtek 2.5Gb Ethernet | ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 |
| Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | Supports 2.4/5GHz frequency band |
| Bluetooth® v5.4* | USB |
| Rear USB (Total 8 ports) | 2 x USB 10Gbps ports (2 x Type-A) |
| 2 x USB 5Gbps ports (2 x Type-A) | 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) | 1 x USB 5Gbps connector (supports USB Type-C®) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | - Supports up to 24-Bit/192 kHz playback |
| Audio Features | - Audio Shielding |
| - Premium audio capacitors | - Dedicated audio PCB layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
ASUS AMD PRIME B650EM-A WIFI (AM5) mATX Motherboard, DDR5 256GB, 1x PCIe 5.0 x16, 3x M.2 slots, 4x SATA, Wi-Fi 6, 2.5Gb LAN, 1x HDMI, 2x DP
