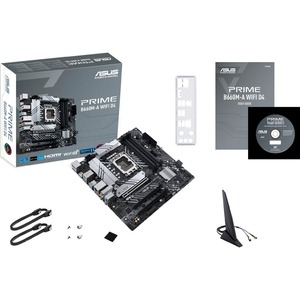

Asus PRIME B660M-A WIFI D4 INTEL B660 LGA1700 MB (PRIME B660M-A WIFI D4)
Asus Prime B660M-A WIFI D4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Ultrafast connectivity : Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS Prime series motherboards are expertly engineered to unleash the full
potential of 12th Generation Intel® processors. Boasting a robust power design,
comprehensive cooling solutions and intelligent tuning options, Prime B660
provides users and PC DIY builders a range of performance tuning options via
intuitive software and firmware features.
ASUS PRIME B660M-A WIFI D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent
Control l All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption
and maximizes energy savings with Away mode - a smart setting that creates an
extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and
tune your system. It offers intelligently simplified options for PC DIY
beginners, as well as comprehensive features for seasoned veterans.
Advanced
Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control.
A built-in search feature makes it easy to find options, and various advanced
functions let you intelligently make nuanced adjustments so you can dial in
performance just the way you want.
Search
Function
Quickly and easily find the option or setting you need.
ASUS User
Profile
Port configuration settings between different BIOS versions or share them with
friends.
COOLING
Prime B660 series are engineered with multiple onboard heatsinks and an array of
hybrid fan headers to ensure your rig stays cool and stable under intense
workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during
sustained transfers. The heatsink is held in place by captive screws.
Cooler by
Design
Prime B660 series feature comprehensive cooling controls that are configurable
via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple
Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows
you to map the temperature of supported ASUS graphics cards to optimize cooling
for GPU- and CPU-intensive tasks.
Audio Channels | 7.1 |
Brand Compatibility | Intel |
Onboard Video | CPU Dependent Video |
Number of Total Expansion Slots | 3 |
Number of PCI Express x16 Slots | 3 |
Total Number of PCI Express Slots | 3 |
Form Factor | Micro ATX |
Width | 244 mm |
Depth | 244 mm |
Bluetooth | Yes |
Gigabit Ethernet | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Maximum Memory Supported | 128 GB |
Memory Technology | DDR4 SDRAM |
Number of Memory Slots | 4 |
Memory Form Factor | DIMM |
UDIMM | |
Memory Speed Supported | 3466 MHz |
5000 MHz | |
4800 MHz | |
3200 MHz | |
3400 MHz | |
3600 MHz | |
2133 MHz | |
3733 MHz | |
4400 MHz | |
3000 MHz | |
4266 MHz | |
5333 MHz | |
4600 MHz | |
2933 MHz | |
2666 MHz | |
2400 MHz | |
2800 MHz | |
3333 MHz | |
4000 MHz | |
Intel Optane Memory Ready | Yes |
Number of SATA Interfaces | 4 |
Total Number of Onboard USB Ports | 10 |
Number of Onboard USB 2.0 Ports | 5 |
Number of M.2 Interfaces | 2 |
Number of Onboard USB 3.2 Ports | 5 |
HDMI | Yes |
Number of Network (RJ-45) Ports | 1 |
DisplayPort | Yes |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 4 |
Number of USB 3.2 Gen 2 Type-A Ports | 2 |
RAID Levels | 1 |
10 | |
5 | |
0 | |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
Intel RST | Yes |
Product Type | Desktop Motherboard |
Manufacturer Part Number | PRIME B660M-A WIFI D4 |
Manufacturer Website Address | http://www.asus.com/au |
Manufacturer | ASUS Computer International |
Product Model | B660M-A WIFI D4 |
Product Name | Prime B660M-A WIFI D4 Desktop Motherboard |
Product Line | Prime |
Brand Name | Asus |
Processor Supported | Core i7 |
Celeron | |
Core i3 | |
Pentium Gold | |
Core i5 | |
Core i9 | |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Chipset Manufacturer | Intel |
Processor Generation Supported | 12th Gen |
