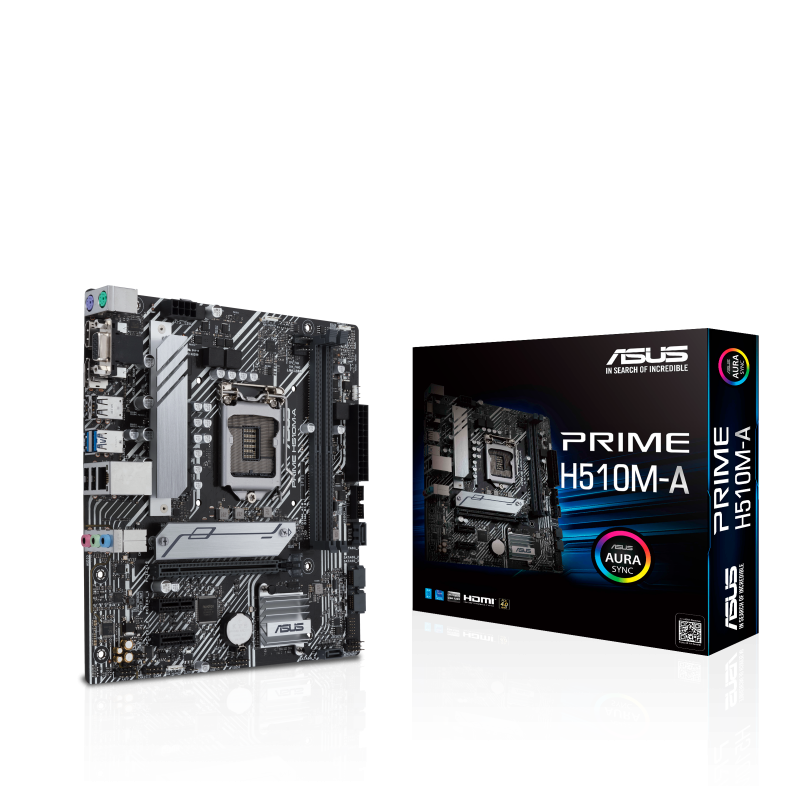

ASUS PRIME H510M-A Intel H510 LGA 1200 Micro ATX Motherboard PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, SATA 6 Gbps (PRIME H510M-A)
No Longer Available
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel®
Core™, Pentium® Gold and Celeron® Processors*
Chipset
Intel® H510 Chipset
Memory
Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphics
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 2.0
Expansion Slots
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA
mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
