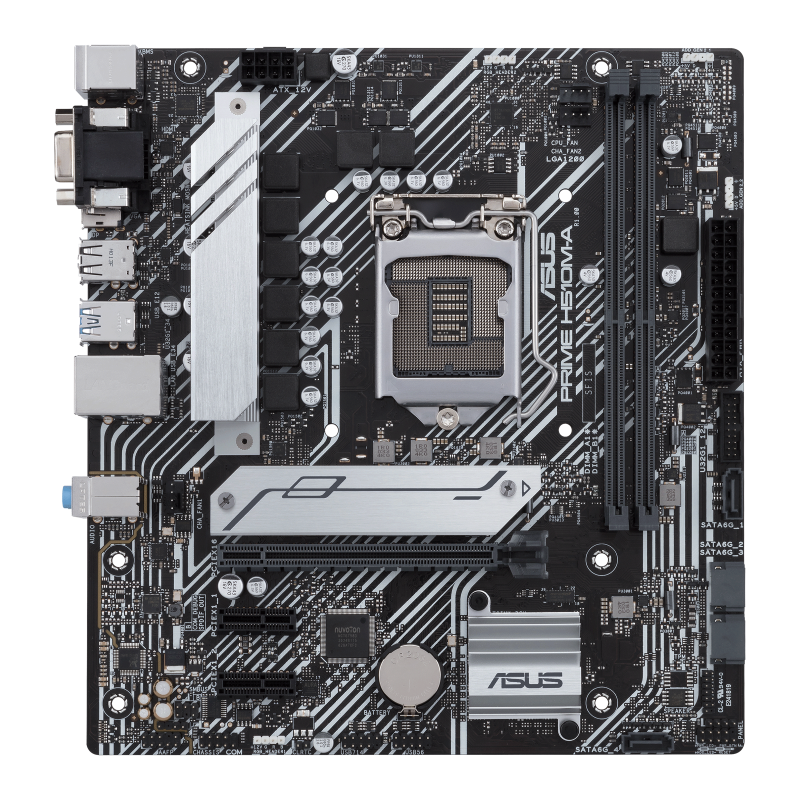

Asus PRIME H510M-A MB H510 Micro-ATX: Socket 1200 For Intel 11th/10th Gen. Processors 2 x DDR4, 1x M.2, 4 x SATA3 6.0,

SKU
373649
Brand
MPN
PRIME H510M-A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $135.00 Regular Price $157.00
Buy Now And Earn 135 Reward Points!

QUICK OVERVIEW

HDMI/D-Sub/DP, USB 3.2/USB2.0, Intel I219-V 1Gb Ethernet, 7.1 Audio, 22.6x21.1 cm

CPU



Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset



H510



Memory



Memory Channels:2DDR4 (Dual Channel)

Max Memory Size:64GB

DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*



Dual Channel Memory Architecture



Supports Intel Extreme Memory Profile (XMP)



* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.



* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.



* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.



Graphics



1 x DisplayPort 1.4

1 x D-Sub

1 x HDMI 1.4 / 2.0***

* Graphics specifications may vary between CPU types.

** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.



*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.



Expansion Slots



Intel 11th & 10th Gen Processors



1 x PCIe 4.0/3.0 x16 slot



- Intel 11th Gen processors support PCIe 4.0 x16



- Intel 10th Gen processors support PCIe 3.0 x16



Intel H510 Chipset



2 x PCIe 3.0 x1 slots



Storage



Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel H510 Chipset



M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)



4 x SATA 6Gb/s ports



* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.



Ethernet



1 x Intel I219-V 1Gb Ethernet



USB



Rear USB:Total 6 ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)



4 x USB 2.0 ports (4 x Type-A)





Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 headers support additional 4 USB 2.0 ports



Audio



Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*



- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking



- Supports up to 24-Bit/192 kHz playback"



Audio Features



- Audio Shielding



- Premium Japanese audio capacitors



- Dedicated audio PCB layers



* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.



Back Panel I/O Ports



2 x USB 3.2 Gen 1 ports (2 x Type-A)



4 x USB 2.0 ports (4 x Type-A)



1 x DisplayPort



1 x D-Sub port



1 x HDMI port



1 x Intel I219-V 1Gb Ethernet port



3 x Audio jacks



1 x PS/2 Keyboard (purple) port



1 x PS/2 Mouse (green) port



Internal I/O Connectors



Fan and Cooling related



1 x 4-pin CPU Fan header



2 x 4-pin Chassis Fan headers



Power related



1 x 24-pin Main Power connector



1 x 8-pin +12V Power connector



Storage related



1 x M.2 slot (Key M)



4 x SATA 6Gb/s ports



USB



1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous



2 x AURA Addressable Gen 2 headers



2 x AURA RGB headers



1 x Clear CMOS header



1 x COM Port header



1 x Front Panel Audio header (AAFP)



1 x S/PDIF Out header



1 x Speaker header



1 x SPI TPM header (14-1pin)



1 x 10-1 pin System Panel header



Special Features



ASUS 5X PROTECTION III



- DIGI+ VRM



- LANGuard



- Overvoltage Protection



- SafeSlot Core



- Stainless-Steel Back I/O



ASUS Q-Design



- Q-DIMM



- Q-Slot



ASUS Thermal Solution



- M.2 heatsink



- VRM heatsink design



AURA Sync



- AURA RGB headers



- Addressable Gen 2 RGB headers



Software Features



ASUS Exclusive Software



Armoury Crate



- AURA Creator



- AURA Sync



AI Suite 3



- Performance and Power Saving Utility



  TurboV EVO



  EPU



  DIGI+ VRM



  Fan Xpert 2+



- EZ update



ASUS CPU-Z



AI Charger



DAEMON Tools



Norton Anti-virus software (Free Trial version)



WinRAR



UEFI BIOS



ASUS EZ DIY



- ASUS CrashFree BIOS 3



- ASUS EZ Flash 3



- ASUS UEFI BIOS EZ Mode



BIOS



128 Mb Flash ROM, UEFI AMI BIOS



Manageability



WOL by PME, PXE



Accessories



Cables



2 x SATA 6Gb/s cables



Miscellaneous



1 x I/O Shield



1 x M.2 Rubber Package



1 x M.2 SSD screw package



Installation Media



1 x Support DVD



Documentation



1 x User manual



Operating System



Windows 10 64-bit



Form Factor



microATX

22.6cm x 21.1cm
