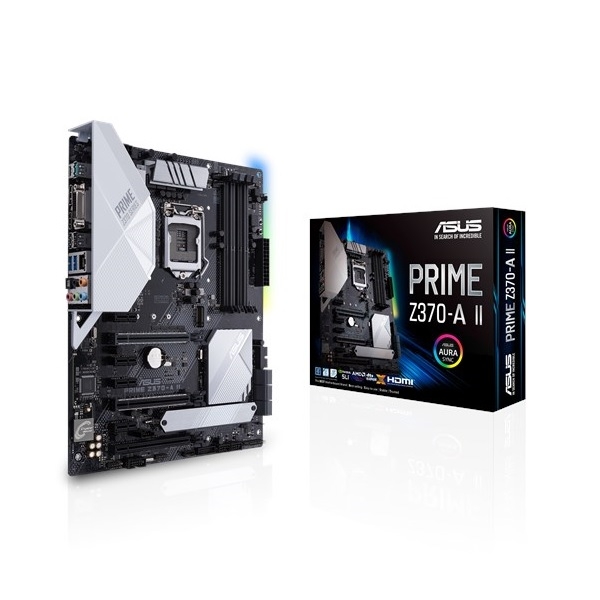

Asus Prime Z370-A Ii Intel Z370 Atx Motherboard Asus-90Mb0Zt0-M0Uay0

Rated /5 based on customer reviews

SKU: 273438

Brand: Asus

Manufacturer Link

MPN: ASUS-90MB0ZT0-M0UAY0

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$273.00
Buy Now And Earn Reward Points!
Qty:

ASUS Prime Z370-A II LGA1151 (Intel 8th Gen) DDR4 DP HDMI DVI M.2 USB 3.1 Z370 II ATX Motherboard with Gigabit LAN and USB 3.1

  • Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Enhanced power solution: Premium components provide better power efficiency
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
  • Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Thunderbolt 3 and dual M.2 support
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
  • ASUS Aura Sync: Controllable onboard RGB lighting that can be easily synced with an ever-growing portfolio of Aura-capable hardware


ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.

Improved stability and overclocking
with all slots populated
DDR4 – 4000MHz
CPU : Intel LGA 1151 i7-8700K | Motherboard : PRIME Z370-A II | DRAM : G.Skill F4-4000C18Q-32GTZ*4 | Power : Corsair AX1500i | Water-cooling : Corsair H115i | OS: Windows 10




OC Design – ASUS Pro Clock Technology

PRIME Z370-A II includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel Core 8th Generation processors.

ASUS Fan Holder

With the all-new ASUS Fan Holder increasing airflow your Prime Z370 Series motherboard's VRM area is simple. Just screw on a 40/50mm fan, mount the bracket on the heatsink, and hook the fan up to a header for a targeted cooling boost. With the Fan Holder and fan in place, VRM temperatures are reduced by up to 25oC — perfect for your overclocking adventures.

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

M.2
Speed up with onboard M.2 up to 32Gbps
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

M.2 heatsink
Keep your SSD cooler
PRIME Z370-A II has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.



Intel Optane memory
Intel Optane memory ready
Intel Optane™ is a revolutionary non-volatile memory technology supported by PRIME Z370-A II. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Learn more >
USB 3.1 Gen 2 Type-A & Type-C
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

ThunderboltEX 3 Card
Experience blistering ThunderboltTM 3 speeds and any-way-up connectivity
PRIME Z370-A II provides full support for a ThunderboltEX 3* card. An Intel-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB Power Delivery specifications for fast, high-power charging of up to 36W.

*ThunderboltEX 3 card available separately for purchase.

Learn more >


Intel Ethernet
More throughput, less CPU usage
PRIME Z370-A II features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Lower CPU workload

High TCP & UDP throughput
Learn more
Reliable stability and compatibility
SafeSlot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z370
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
    * For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
    ** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
  • Storage
    1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
    6 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports

    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
    ASUS Turbo LAN Utility
    ASUS LAN Guard
  • Audio
    Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Front panel audio connector (AAFP)
    - Supports up to 32-Bit/192kHz playback *3
    Audio Feature :
    - DTS Headphone:X
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
    - Power pre-regulator: Reduces power input noise to ensure consistent performance
  • USB Ports
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output)
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM, Support 3A power output)
    Intel® Z370 Chipset :
    6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board)
    Intel® Z370 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    OC Design - ASUS PRO Clock Technology
    - Full BCLK range for extreme overclocking performance
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    ASUS TPU :
    - Auto Tuning
    - GPU Boost
    ASUS EPU :
    - EPU
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    - Ai Charger
    - Turbo LAN
    - Crystal Sound 3
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - Precision Tweaker 2
    - ASUS O.C. Tuner
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
  • Back I/O Ports
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 Gen 2 Type-A,
    1 x USB 3.1 Gen 2 USB Type-CTM
    2 x USB 3.1 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x Aura RGB Strip Header
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x MemOK! button(s)
    1 x CPU OV
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x T_Sensor Connector
    1 x AIO PUMP Header
    1 x M.2 Fan Header
  • Accessories
    User's manual
    ASUS Q-Shield
    1 x ASUS Fan Holder
    3 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x Q-connector(s) (1 in 1)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS,
    ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
    F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Manageability
    WfM 2.0, DMI 3.1, WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
    *2. The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
    *3. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows® 10.
Manufacturer: ASUS. ASUS Prime Z370-A II LGA1151 (Intel 8th Gen) DDR4 DP HDMI DVI M.2 USB 3.1 Z370 II ATX Motherboard with Gigabit LAN and USB 3.1.

Highlights:

* 5-Way Optimization.
* FanXpert 4.
* Aura Sync RGB.
* 8 Channel HD audio.

Specifications:

- Socket: 1151.
- Chipset: Intel Z370.
- Form Factor: ATX.
- Dimensions: 30.5 x 24.4cm.

Would you like to know more? Check out the full product information page.
