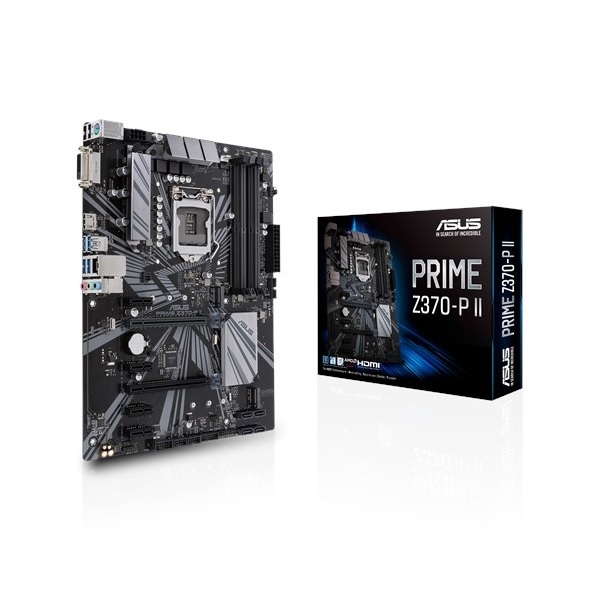

main product photo

Asus Prime Z370-P Ii Ga1151 (Intel 8Th Gen) Ddr4 Hdmi Dvi M.2 Z370 Ii Atx Motherboard With Gigabit

SKU
272279
Brand
Asus
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

LAN and USB 3.1 ASUS-90MB0ZZ0-M0UAY0
Add to Compare

ASUS Prime Z370-P II LGA1151 (Intel 8th Gen) DDR4 HDMI DVI M.2 Z370 II ATX Motherboard with Gigabit LAN and USB 3.1

  • Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Enhanced power solution: Premium components provide better power efficiency
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • Fan Xpert 4 Core: Flexible controls for ultimate cooling and quietness
  • Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
  • Intel Optane memory ready: The latest high-speed storage technology.
　

ASUS Prime Z370 Series motherboards provide the solid foundation needed for your first build, plus loads of scope to grow with your ambitions. We've melded all the good stuff that's packed into the latest Intel processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, immersive onboard audio, and support for the ASUS Fan Extension Card. Build smart and easy with ASUS Prime Z370.

Power delivery enhancements

Enhanced power delivery

Prime Z370-P II adjusts power delivery based on the number of power phases, optimizing power and efficiency for the latest Intel processors.

　
　
　

ProCool power connector

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

　
　
　

Make your memory go faster

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.

Improved stability and overclocking
with all slots populated
DDR4 – 4000MHz
CPU : Intel LGA 1151 i7-8700K | Motherboard : PRIME Z370-P II | DRAM : G.Skill F4-4000C18Q-32GTZ*4 | Power : Corsair AX1500i | Water-cooling : Corsair H115i | OS: Windows 10
　
　
　
Reliable stability and compatibility

Prime series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

SafeSlot Core

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.

Our Prime Z370 motherboards also have strengthened solder points around both the PCIe and DIMM pins.



LANGuard

Pumped-up throughput, 2.5X-higher surge tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators protects your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DIGI+ VRM

Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide assure a lifespan that's 3X longer than ordinary panels.

  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z370
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Z370 Chipset :
    2 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
    4 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
    Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
    PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
    ASUS LAN Guard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    Intel® Z370 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue)
    Intel® Z370 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, )
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: Premium components provide better power efficiency
    ASUS OptiMem：
    - Optimem (Improved DDR4 stability)
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 4 Core
    ASUS EZ DIY :
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x AIO PUMP Header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x SCD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.1, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.1, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
  • Note
    * PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card.**
    ** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
    *1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
Manufacturer: ASUS. ASUS PRIME Z370-P II offers an Intel LGA-1151 ATX motherboard with LED lighting, DDR4 4000MHz, Dual M.2, Intel Optane Memory Ready, HDMI, SATA 6Gbs, USB 3.1 Gen 1.

Highlights:

* ASUS OptiMem.
* 5X Protection III.
* Fan Xpert 4 Core.
* Ultrafast connectivity.

Specifications:

- Socket: 1151.
- Chipset: Intel Z370.
- Form Factor: ATX.
- Dimensions: 30.5 x 21.1cm.
