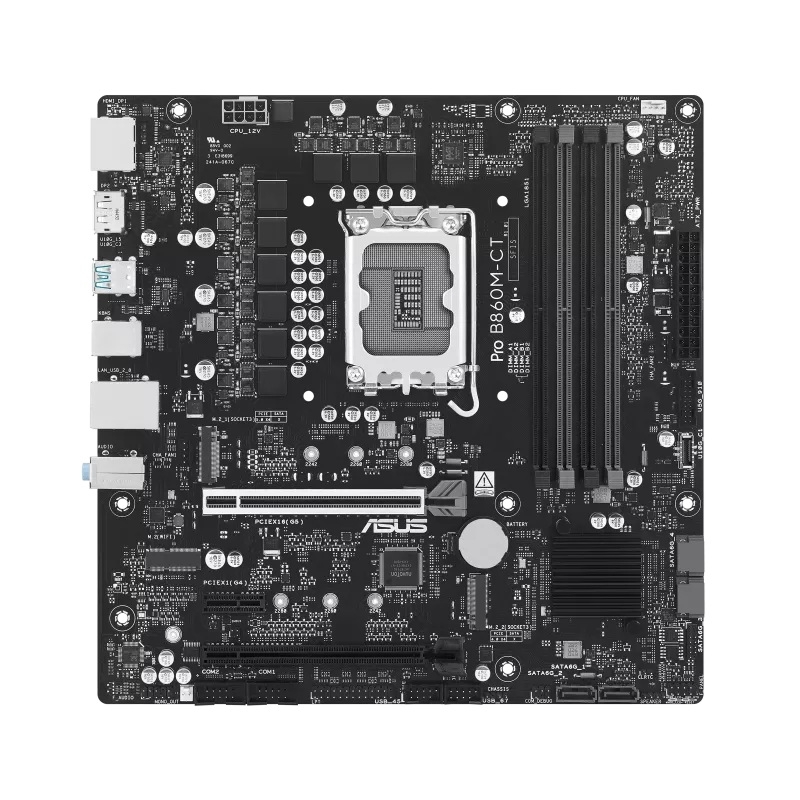

Asus Pro B860M-Ct-Csm-Si, Micro-ATX Motherboard, Intel B860, LGA1851, DDR5 256GB, PCIe 5.0, 2× M.2, 1GbE, Commercial Bios PRO B860M-CT-CSM-SI
SKU
450761
Brand
MPN
PRO B860M-CT-CSM-SI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$185.00
Buy Now And Earn 185 Reward Points!
ASUS PRO B860M-CT-CSM-SI
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
* Graphics
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
* Graphics
| Model | Pro B860M-CT-CSM |
| News & Updates | Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: |
| •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). | •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. |
| Please visit our GLOBAL website to check and download the latest updates. | CPU |
| Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, dual DIMM clips |
| Supports up to 8666+ MT/s(OC) , Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" | Dual channel memory architecture |
| DIMM Fit | Supports Intel® Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III (AEMP III) | Graphics |
| 2 x DisplayPort** | 1 x HDMI™ port*** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | ** DP1 Supports max. 4K@60Hz and DP2 Supports max. 8K@30Hz as all specified in DisplayPort 1.4 |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | ***** VGA resolution support depends on processors' or graphic cards' resolution. |
| ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. | Expansion Slots |
| Intel® Core™ Ultra Processors(series 2)* | 1 x PCIe 5.0 x16 SafeSlot |
| Intel® B860 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) |
| 1 x PCIe 4.0 x1 slot | - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® Core™ Ultra Processors(series 2) * | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| 4 x SATA 6Gb/s ports | * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel®1Gb |
| ASUS LANGuard | *With Intel® I219-V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. |
| Wireless & Bluetooth | M.2 slot only 2230 (Key E, CNVi & PCIe)* |
| *Wi-Fi module is sold separately. | BIOS |
| 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | Manageability |
| WOL by PME, PXE | Operating System |
| Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) | Form Factor |
| micro-ATX Form Factor | 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
ASUS PRO B860M-CT-CSM-SI, Micro-ATX Motherboard, Intel B860, LGA1851, DDR5 256GB, PCIe 5.0, 2× M.2, 1GbE, Commercial BIOS
