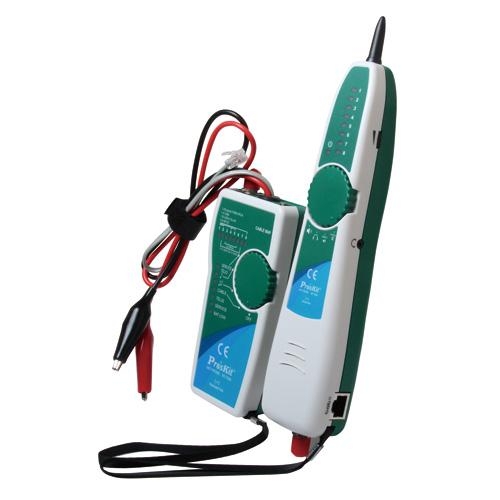

Pro'sKit All-In-One Toner Probe Kit MT-7068
No Longer Available
The MT-7068 All-in-one Toner & probe Kit lets you use Toner and Probe to validate and troubleshoot wiring on RJ11/RJ45 cables and connectors, USB, F, BNC, and RCA connectors, and it also supplied with alligator clips to work with. The MT-7068 Toner detects telephone and Ethernet service, indicates polarity and active line numbers on voice circuits, and indicates active pair number on Ethernet circuits. The MT-7068 Toner and Probe also provide standard functions such as visual and audible signal strength indication, analog toning/detection, and continuity testing. It is ideal for all maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.
- Validate and troubleshoot wiring on RJ11/RJ45 cables, USB, F, BNC and RCA connectors.
- Detects telephone and Ethernet service, indicates polarity and active line numbers on voice circuits, and active pair number on Ethernet circuits
- Ideal for all maintenance fields of telecommunication, networking, datacom, Audio/Video, Cable TV and all weather cabling, etc.
- Locates cables quickly and easily
- Overcome noise and save time
- Tone on live networks safely and effectively
- Verify conductor continuity with cable map
MT-7068-T Transmitter Specifications
- Tone frequency: 1kHz
- Tone mode: ONE/TWO-note tone
- Compatible connectors:
- RJ-45/RJ-11/USB/F/BNC/
- RCA/Alligator Clips
- Continuity test: <300Ω
- Talk battery voltage: 6V into 600Ω
- Function selection: 5-position rotary switch
- Cable map indication: 8 LED indicators
- Voltage protection: 100V
- Low battery display: 6.5V
- Battery type: 9V (6F22)
- Dimension (LxWxD): 140x70x30mm
MT-7068-R Receiver Specifications
- Frequency: 1kHz
- Compatible connectors: RJ-45/RJ-11/USB/F/BNC/RCA
- Ear jack: 1
- Signal status indication: 8 LED indicators
- Cable map indication: 8 LED indicators
- Low battery display: 6.5V
- Battery type: 9V (6F22)
- Dimension (LxWxD): 250x52x33mm
- Individual packing: Color box
Details:
The MT-7068 All-in-one Toner & probe Kit lets you use Toner and Probe to validate and troubleshoot wiring on RJ11/RJ45 cables and connectors, USB, F, BNC, and RCA connectors, and it also supplied with alligator clips to work with. The MT-7068 Toner detects telephone and Ethernet service, indicates polarity and active line numbers on voice circuits, and indicates active pair number on Ethernet circuits. The MT-7068 Toner and Probe also provide standard functions such as visual and audible signal strength indication, analog toning/detection, and continuity testing. It is ideal for all maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.
Specifications:
MT-7068-T Transmitter Specifications
- Tone frequency: 1kHz
- Tone mode: ONE/TWO-note tone
- Compatible connectors:
- RJ-45/RJ-11/USB/F/BNC/
- RCA/Alligator Clips
- Continuity test: <300Ω
- Talk battery voltage: 6V into 600Ω
- Function selection: 5-position rotary switch
- Cable map indication: 8 LED indicators
- Voltage protection: 100V
- Low battery display: 6.5V
- Battery type: 9V (6F22)
- Dimension (LxWxD): 140x70x30mm
MT-7068-R Receiver Specifications
- Frequency: 1kHz
- Compatible connectors: RJ-45/RJ-11/USB/F/BNC/RCA
- Ear jack: 1
- Signal status indication: 8 LED indicators
- Cable map indication: 8 LED indicators
- Low battery display: 6.5V
- Battery type: 9V (6F22)
- Dimension (LxWxD): 250x52x33mm
- Individual packing: Color box
