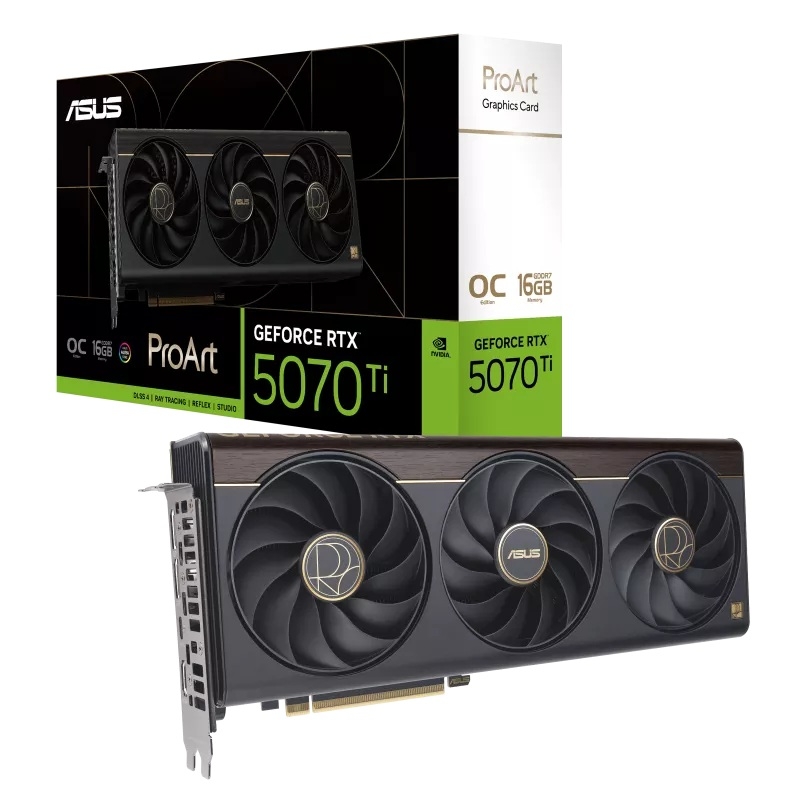

ASUS nVidia ProArt GeForce RTX™ 5070 Ti 16GB OC Edition 16GB GDDR7

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

TECH SPECS
Model
PROART-RTX5070TI-O16G
Graphic Engine
NVIDIA® GeForce RTX™ 5070 Ti

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
16GB GDDR7

Engine Clock
OC mode: 2610MHz
Default mode: 2588MHz (Boost Clock)

CUDA Core
8960

Memory Speed
28 Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1b), Yes x 1 (USB Type-C), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x PROART Graphics Card Holder
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch

Recommended PSU
850W

Power Connectors
1 x 16-pin

Slot
2.5 Slot

AURA SYNC
ARGBW

SFF Ready
Compatible

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All
