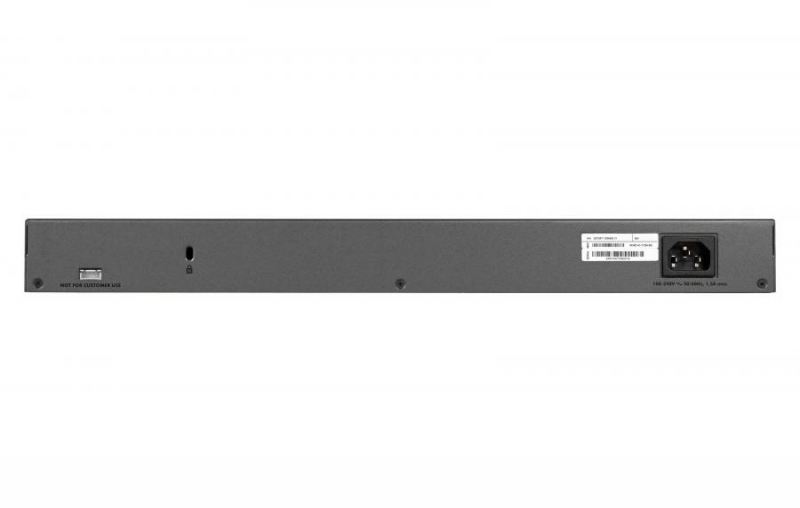

Netgear Prosafe Xs708t 8-port 10-gigabit Ethernet Smart Managed Switch (8 Copper With 2 Shared Combo Copper/ Sfp+ Fiber Ports) Xs708t-100ajs
No Longer Available
The NETGEAR ProSAFE® XS708T, XS716T, XS728T, and XS748T are powerful Smart Managed Switches that come with 8, 16, 24, or 44 10-Gigabit Copper ports and either 2 Shared (Combo) Copper/SFP+ ports (XS708T/XS716T) or 4 additional Dedicated SFP+ ports (XS728T/XS748T) for 10G Fiber links. The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the “center of a small business network” or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10-Gigabit NETGEAR ProSAFE Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T and XS716T are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.
Comprehensive L2+/Layer 3 Lite Features
The ProSAFE 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:
-
Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
-
Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues
-
IPv4 and IPv6 static routing
-
Private VLAN
-
Dynamic VLAN assignment
-
IGMP and MLD snooping
-
Advanced Security
-
IPv6 for management, QoS and ACL
10-Gigabit Transition with BASE-T
-
10GBASE-T, like other BASE-T technologies, uses the standard RJ-45 Ethernet jack
-
It is backward compatible, auto-negotiating between higher and lower speeds – thereby not forcing an all-at-once network equipment upgrade
-
Cat 5 / Cat 5e are supported for Gigabit speeds up to 100 meters
-
Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
-
Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections
Designed as a Core Switch for SMB Networks
-
10G connection to 10G-capable servers and network storage
-
Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment
-
Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 support
-
Static routing helps to route internal traffic for more efficient use of network resources
-
IGMP and MLD snooping provide advanced multicast filtering
Act as an Aggregation Switch for Medium Sized Networks
-
10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
-
10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
-
Up to eight 10-Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection
-
10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently
Product Number
XS708T
Product Thumbnail
10-Gigabit copper ports
- 8 10GBASE-T copper
SFP ports
- 2 SFP+ 1000/10GBASE-X fiber ports (shared)
Buffer size
- 2 MB
MAC address database size
- 16K
VLAN (# supported)
- 512
Number of LAGs & number of members
- 8 LAGS with max 8 members in each LAG (LACP)
Number of priority queues
- 8
Access Control Lists (ACLs)
- 100 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes
- 32
IPV6 Static routes
- 32
Power supply
- Internal 100-240VAC 50-60Hz
Max power consumption (Watts)
- 49.5 W
Fan
- 1
Acoustic Noise Level @25C (dBA)
- 27.4 dBA
Operating Temperature
- -5° to 55°C (23° to 131°F)
MTBF (@ 25° C)
- 276,197 hours
Electromagnetic compliance (A or B)
- Class A
Dimensions (W x D x H)
- 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)
Weight
- 2.61 kg (5.76 lb)
The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems.
They can be used at the “center of a small business network” or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10-Gigabit NETGEAR ProSAFE Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T is also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.
