EATON 10A SERIES FILTER, IEC 10A INPUT/OUTPUT SOCKETS, PORTABLE, SINGLE PHASE, 1YR PSF10I
SKU
399650
Brand
MPN
PSF10I
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$286.00
Buy Now And Earn 286 Reward Points!
OVERVIEW

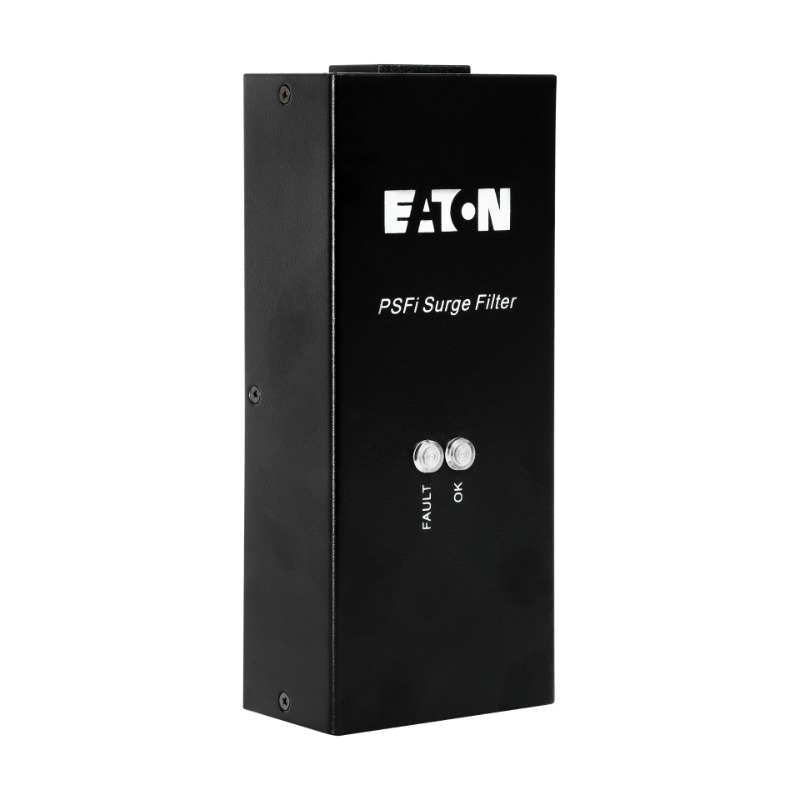

Eaton 10A Series Filter, IEC 10A input/output sockets, PSFi Portable Single Phase Surge Filter, 1YR
Specifications
PRODUCT NAME
Eaton Surge protection
CATALOG NUMBER
PSF10I
PRODUCT LENGTH/DEPTH
205 mm
PRODUCT HEIGHT
55 mm
PRODUCT WIDTH
90 mm
PRODUCT WEIGHT
.5 kg
CERTIFICATIONS
AS3000
AS3100
IES610006-1,2,3,4
ANSI/IEEE C62.41 Cat B,C,D,E
CE
IEC61643-1
AS1768-2007 Cat B,C,D,E
AS3100
IES610006-1,2,3,4
ANSI/IEEE C62.41 Cat B,C,D,E
CE
IEC61643-1
AS1768-2007 Cat B,C,D,E
PRODUCT SPECIFICATIONS
PHASE
Single-phase
OPERATING TEMPERATURE - MIN
-10 °C
CONFIGURATION
Diverter-filter-diverter
FAULT CURRENT
40 kA
CONNECTION
Single-phase
MOUNTING METHOD
Portable
NOMINAL DISCHARGE CURRENT 8X20US (IN)
3 kA
MAXIMUM DISCHARGE CURRENT 8X20US (IMAX)
40 kA
OPERATING TEMPERATURE - MAX
50 °C
CLASS
Class 3 Cat A
MAXIMUM CONTINUOUS OPERATING VOLTAGE
320
DEGREE OF PROTECTION
IP24
APPLICATION
Point of use protection
