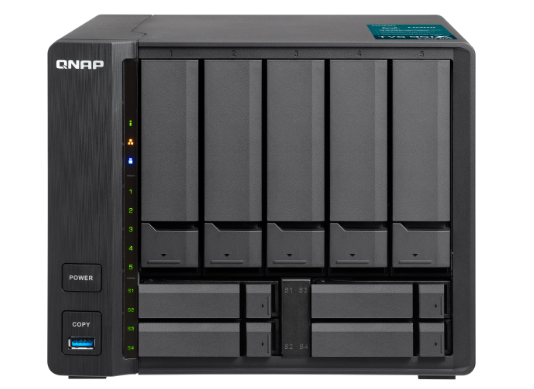

Qnap Tvs-951X-2G 9-Bay Nas Intel Celeron 3865U Dual-Core 1.8 Ghz
SKU
278600
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
2Gb Ddr4 (1 X 2Gb) Sodimm Ram ( 2 Slots Max 32Gb) 2Y Ar Wty Tvs-951X-2G
| CPU | Intel® Celeron® 3865U dual-core 1.8 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 610 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 2 GB SO-DIMM DDR4 (1 x 2 GB) |
| Maximum Memory | 32 GB (2 x 16 GB) |
| Memory Slot |
2 x SO-DIMM DDR4
For dual-DIMM configurations, you must use a pair of
identical DDR4 RAM modules.
|
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay |
5 x 2.5-inch or 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port |
1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Please use Cat 6a or Cat 7 LAN cables (sold separately) to
achieve 10GbE speed over longer distance.
|
| Jumbo Frame | |
| USB 3.0 port | 4 |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 1.4b (up to 4096 x 2304 @ 24Hz) |
| Audio Output | 1 x speaker, 1 x line out |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-5, SSD1-4 |
| Buttons | Power, One Touch Copy, Reset |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Weight (Net) | 3.53 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 120W 100-240V AC adapter |
| Power Consumption: Operating Mode, Typical |
39.366 W
With 5 x HDD + 4 x SSD fully populated
|
| Fan | 1 x 120mm system fan |
| Kensington Security Slot |
The TVS-951X is powered by a 7th-generation Intel® Celeron® 3865U low-power dual-core processor, with 2GB/8GB DDR4 dual-channel memory (up to 32GB) and features a hybrid drive bay design (including five 3.5-inch drive bays and four 2.5-inch SSD bays) that supports up to nine drives in the same physical space as a 5-bay NAS. When 2.5-inch SSDs are installed in their dedicated bays, you can enable SSD caching and Qtier auto-tiering technologies to boost overall system performance. As the price of SSDs continues to become more accessible, the TVS-951X provides a high-performance and budget-friendly storage solution for SMBs. The TVS-951X also features a built-in 10GBASE-T/NBASE-T port for you to build a 10GbE high-speed network environment.
