DESCRIPTION

CC560 V2

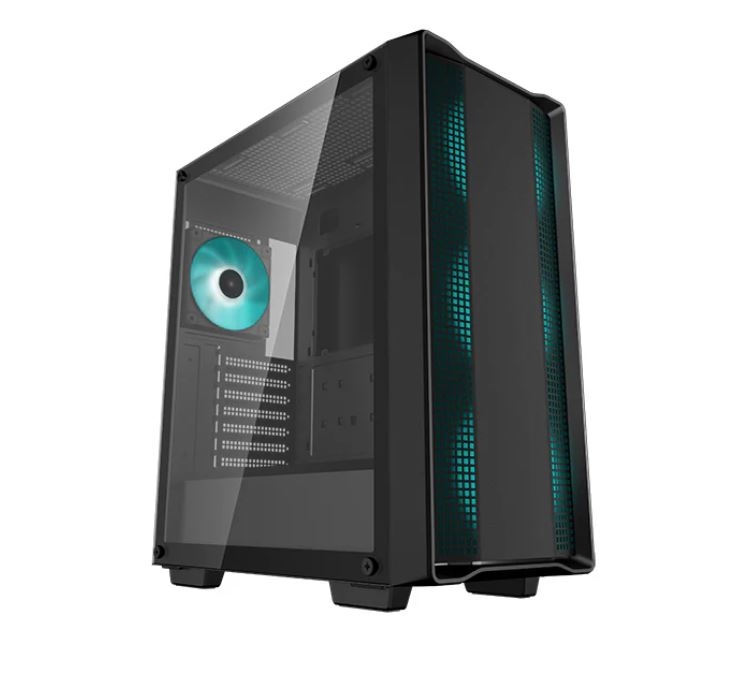

The DeepCool CC560 V2 mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that get any build started right. The V2 models build upon the success of the previous generation and raises the bar.

Technical Spec
Product Dimensions 432×215×483mm(L×W×H)
Net Weight 7.2Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX
Front I/O Ports USB3.0×1 / USB2.0×1 / Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3×120mm LED
Rear: 1×120mm LED
Fan Support Front: 3×120 / 3×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
PSU Shrouded: 2×120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
CPU Cooler Height Limit 165mm
GPU Length Limit 320mm
Power Supply Type ATX PS2 （maximum length: 170mm）
P/N R-CC560-BKGAA4-G-2
