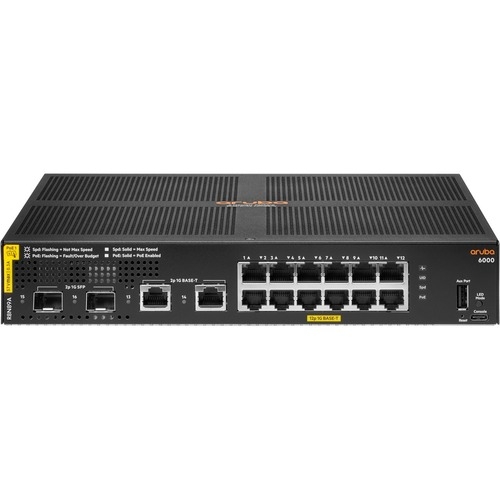

HPE ARUBA 6000 12G CL4 2SFP 139W SWCH R8N89A#ABG
ARUBA 6000 12G CL4 2SFP 139W SWCH
The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
PRODUCT DIFFERENTIATORS | AOS-CX - a modern software system
The Aruba CX 6000 Switch Series is based on AOSCX, a modern, database-driven operating system that is built on a modular Linux architecture. With the CX 6000 series, the benefits of the AOS-CX architecture is extended to small enterprise deployments providing the following unique capabilities:
- Easy access to all network configuration state information
- REST APIs for fine-grained programmability of network tasks
- A micro-services architecture that enables full integration with other workflow systems and services
- All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
Aruba ASICs - programmable innovation
Based on over 30 years of continuous investment, Aruba's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The Aruba CX 6000 is based on the Aruba ASIC architecture.
Access layer performance
The Aruba CX 6000 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
- Up to 104 Gbps in non-blocking bandwidth and up to 77.3 Mpps for forwarding
- Features 12 networking ports to easily establish a local network or expand your existing one
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
| Manageable | Yes |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of Total Expansion Slots | 2 |
| Number of SFP Slots | 2 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| RoHS |
| Network Technology | 10/100/1000Base-T |
| 100/1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | R8N89A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 6000 12G Class4 PoE 2G/2SFP 139W Switch |
| Product Series | CX 6000 |
| Brand Name | Aruba |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| IEEE 802.1p | |
| IEEE 802.1ab | |
| IEEE 802.1D | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 16 W |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 139 W |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 2 x Gigabit Ethernet Network | |
| 12 x Gigabit Ethernet PoE |
| Weight (Approximate) | 2.78 kg |
| Form Factor | Surface Mount |
| Rack-mountable | |
| Cabinet Mount | |
| Wall Mountable | |
| Height | 43.9 mm |
| Width | 254 mm |
| Depth | 255 mm |
| Compatible Rack Unit | 1U |
