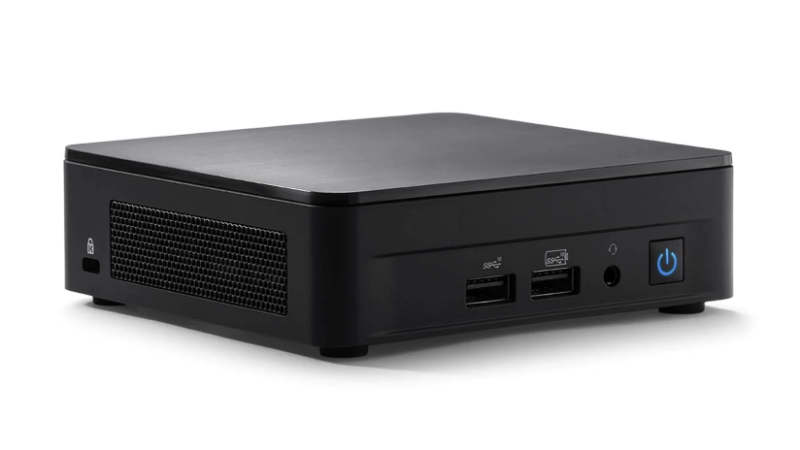

Intel NUC 12 Pro Kit NUC12WSKi5, no cord, single unit RNUC12WSKI50000
SKU
390680
Brand
MPN
90AB2WSK-MR6100
Warranty
Standard Manufacturer's Warranty
$633.00
Buy Now And Earn 633 Reward Points!
Powerful Performance. Perfect Fit
Intel® NUC 12 Pro Mini PCs, Kits, and Boards raise the bar for performance and connectivity in a 4x4 device for productivity, collaboration, and edge compute. 12th Gen Intel® Core™ processors—plus up to 64GB dual channel memory and massive SSD capacity—drive enterprise-class performance in a pint-sized PC. Collaboration is faster and easier than ever with lightning-fast wired and wireless connectivity options. Select SKUs come with Intel vPro® technology for remote manageability, hardware-enhanced security features, and platform stability to help businesses cut IT costs and boost uptime.
The systems are built to deliver great experiences at the edge, with their small size, numerous ports front and back, dual LAN expansion module (select SKUs), and these added features:
- 12th Gen Intel® Core™ i7/i5/i3 processors
- Up to 64GB dual-channel DDR4-3200 memory
- Intel® Iris® Xe graphics or Intel® UHD graphics
- M.2 slots for PCIe x4 Gen 4 NVMe SSD and second SSD (select SKUs support third SSD)
- 2x Thunderbolt™ 4 ports (select SKUs),
- 3x USB 3.2 ports, 1 USB 2.0 port,
- 2x HDMI 2.1 TMDS Compatible
- Intel® i225-V Ethernet for speeds up to 2.5 Gbps and Intel® Wi-Fi 6E AX211 (Gig+)
- Tolerates 0-40° C external ambient operating temperature
- All USB ports with individual USB power control
- Intel three-year warranty
- Three-year product availability
Specifications
| Accessory | |
| Card Reader | None |
| Chipset | Not Available |
| Dimensions | 117 x 112 x 37mm |
| Form Factor | NUC |
| Front/Rear Ports | Intel® i225 -v 10/100/1000/2500 Mbps RJ45 Ethernet | Discrete TPM 2.0 | 2x front and 1x rear USB 3.2 Gen 2 type A ports 1x rear type A and 2x internal USB 2.0 headers | 2x HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port 3.5mm front stereo headset jack | Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports (select SKUs only) |
| Graphics | Intel® Iris® Xe Graphics 80EU, 1.40 GHz |
| LAN | Intel® Ethernet Controller i225-V |
| Memory | Not included. ** Support Dual channel DDR4-3200 SODIMMs, 1.2V, 64GB max |
| Operating System | Not included ** Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro, Red Hat Linux, Ubuntu 20.04 LTS |
| Power Supply | AC Adapter **Power cable not included |
| Processor | Intel® Core™ i5-1240P Processor (12M Cache, up to 4.40 GHz) |
| Product Family | Wall Street Canyon |
| Storage Capacity | Not included |
| Storage Type | Not included ** Support M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD, M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2 and SATA SSD expandability |
| Weight | |
| Wireless | Intel® Wi-Fi 6E AX211 (Gig+) on M.2 slot, Bluetooth™ 5.2 |
Intel NUC 12 Pro Kit NUC12WSKi5, no cord, single unit
