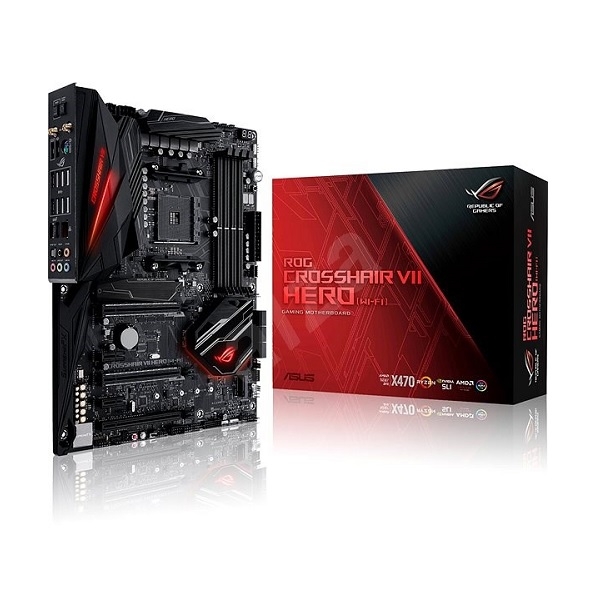

AMD X470 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 3600MHz, 802.11ac Wi-Fi, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

SILKSCREEN LABELS
ROG Crosshair VII Hero wears an informative silkscreen that makes it easy to identify native ports for your drives and peripherals, and also which PCI Express and memory slots to populate for best system performance.


LEADING
CUSTOMIZATION

AURA SYNC
ASUS Aura offers full RGB lighting control with a variety of functional presets for built-in RGB LEDs and for lighting strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
**RGB extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.

Static
Static
Breathing
Breathing
Strobing
Strobing
Rainbow
Rainbow
Color cycle
Color cycle
Comet
Comet
Flash and dash
Flash and dash
Wave
Wave
Glowing Yo-Yo
Glowing Yo-Yo
Starry Night
Starry Night
Music effect
Music Effect
Smart
Smart
ADDRESSABLE STRIPRGB STRIP
AURA Lighting Control

Infinite Lighting Possibilities

Learn More About AURA
AURA SYNC X PHILIPS HUE

ROG Crosshair VII Hero takes ASUS Aura into the home — and now it also lets you synchronize effects with Philips® Hue personal wireless lighting. Easily control your Hue light bulbs, strips and lamps from the simple Aura app , and create immersive illumination that extends beyond your rig to make the whole room part of your gaming experience.


PERFORMANCE
OC DESIGN

ASUS PRO CLOCK TECHNOLOGY

By default, all of Ryzen's major bus frequencies are derived from the same reference clock, limiting the control and flexibility needed to harness the full overclocking potential of the platform. ROG Crosshair VII Hero features a dedicated onboard clock generator that supplies dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.


DDR4 OVERCLOCKING STRENGTH IN NUMBERS

Whether you're gunning for high memory frequencies or tuning timings for the lowest latency, ROG Crosshair VII Hero provides the tools you need to exploit Ryzen's latent potential: carefully optimized trace pathways maintain signal integrity, and the acclaimed ROG firmware offers the necessary tweaks to ensure stability while maximizing memory performance. Load up with a high-density memory kit for heavy multitasking, or run a focused setup that delivers the bandwidth your favorite games and applications need. Any way you stack it, the Hero has you covered.

RamCache II

5-Way Optimization
MEDIA-ACCLAIMED UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your Ryzen-based rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Designed for easy setup, the EZ Mode presents all the vital settings and stats on a single page. With guided wizards, drag and drop capability that takes the hassle out of complex tasks, and one-click convenience to apply important settings, your rig will be up and running in no time.

When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.
COOLER BY DESIGN

ROG Crosshair VII Hero features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Rampage VI Extreme
Multiple temperature sources positionBlock sensor position4-pin PWM/DC fan positionFan Extension Header positionSmart Protection positionWater in/out positionWater flow positionWater pump+ position
Multiple temperature sources

Water pump+

4-pin PWM/DC fan

Fan Extension Header
Smart protection

Water in/out

Water flow

AIO pump
Each header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
ROGAUDIO

SUPREMEFX

ROG's SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® Sabre Hi-Fi ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to deliver audio that envelops you as never before.



S1220 CODEC

10 DAC channels, simultaneous 7.1 channel playback, independent 2.0-channel, multiple-stream stereo to front panel outputs


ESS® SABRE ES9023P DAC

Creates a perfect balance for top-tier audio clarity capable of -112dB THD


NICHICON CAPS

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.


GOLD-PLATED AUDIO JACKS

Backlit audio jacks save you from fumbling around in the dark


SWITCHING MOSFETS

Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs

S1220 CODEC
ESS® SABRE ES9023P DAC
NICHICON CAPS
GOLD-PLATED
AUDIO JACKS
SWITCH MOSFETS
Sonic Studio III

Sonic Radar III

Learn More About ROG Audio
ROGGIVES
YOUMORE

TEAM UP TO BANISH LAG

GAMEFIRST IV

GameFirst IV optimizes network traffic for faster, lag-free online gaming. New Multi-Gate Teaming brings together all your networks to create gargantuan bandwidth and smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database to ensure that every game is optimized for best performance.

WATCH VIDEO
greater total bandwidthgamefirst
Stay in the Game

And...More
THE POWER OF AMD


AM4 socket for AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ Vega Graphics / Ryzen™ 1st Generation / 7th Generation A Series / Athlon X4 processors.

The high-performance Ryzen processor supports up to eight cores, and is based on the innovative Zen core architecture. The 7th Generation A Series APUs feature integrated AMD Radeon R Series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes for superb performance.


AMD X470 chipset

The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD AM4-socket Ryzen™ processors, 7th Generation A Series APUs and Athlon™ CPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and six 6Gbps SATA ports for faster data retrieval.
