Asus Maximus Z790 Apex Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Celeron, Pentium Gold Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/a ROG
No Longer Available
Asus Maximus Z790 Apex Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Celeron, Pentium Gold Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - 6 x SATA Interfaces

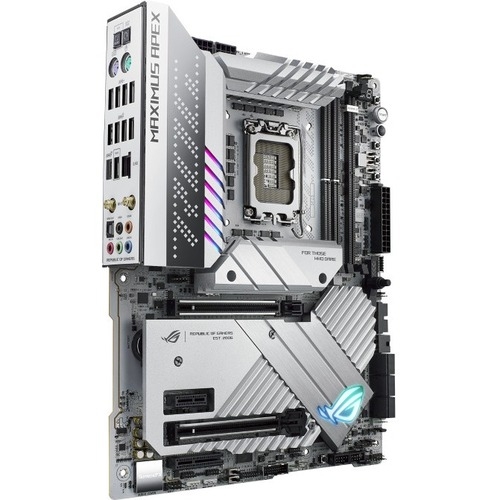

ROG Maximus Z790 Apex
A relentless focus on overclocking makes the Maximus Apex Z790 a dream for upper-echelon enthusiasts. Bountiful power delivery and similarly capable cooling stack the odds in your favor for reaching 6 GHz and higher with the latest 13th Gen Intel® Core™ Processors. PCB trace optimizations allow DDR5 memory to strut timings and frequencies far beyond the capabilities of 4-DIMM-slot designs. A plethora of quality-of-life features and controls afforded by onboard components and software utilities make it all readily accessible for users of all stripes. Get ready for the highest performance numbers... ever.
OVERCLOCKING
ROG Maximus Apex boards are well-known as a record-setting platform for overclocking enthusiasts. From OC-centric components and design choices, to a massive power delivery system, the beast is back to rock new world records in multiple domains.
COOLING
Massive heatsinks cover the Z790 Apex from top to bottom and across both M.2 expansion cards, giving critical components ample thermal headroom to realize their true potential.
CONNECTIVITY
As the Maximus moniker implies, the Z790 Apex is fully equipped with the latest storage, networking, and audio features.
OPTIMIZATION
A bevy of innovative tools offers control over every aspect of your system.
PERSONALIZATION
The Z790 Apex keeps its iconic cross-board slash, but brings a new silver and white color scheme to the Maximus lineup. Onboard components contrast beautifully against a white PCB, and a tasteful touch of RGB on the shroud and chipset heatsink brings customizable color into the mix.
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- RAID supported levels provide data reliability and fault tolerance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
- DDR5 SDRAM slot for convenient installation of memory
- Compatible Core processor lets you perform all your computational tasks at a swift pace
| Audio Channels | 7.1 |
| Onboard Video | CPU Dependent Video |
| Package Contents |
|
| Brand Compatibility | Intel |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 5 |
| RAID Levels | 1 |
| 10 | |
| 5 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 5600 MHz |
| 8000 MHz | |
| 7800 MHz | |
| 7600 MHz | |
| 7467 MHz | |
| 7200 MHz | |
| 7000 MHz | |
| 6800 MHz | |
| 5400 MHz | |
| 5200 MHz | |
| 5000 MHz | |
| 4800 MHz | |
| 6600 MHz | |
| 6400 MHz | |
| 6200 MHz | |
| 6000 MHz | |
| 5800 MHz |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | ROG MAXIMUS Z790 APEX |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Name | Maximus Z790 Apex Gaming Desktop Motherboard |
| Product Line | Maximus Z790 Apex |
| Brand Name | Asus |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 5.0 | |
| Total Number of PCI Express Slots | 4 |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 10 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| Number of Thunderbolt 4 Ports | 1 |
| Processor Supported | Core |
| Celeron | |
| Pentium Gold | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Processor Generation Supported | 12th Gen |
| 13th Gen | |
| 13th Gen | |
| 12th Gen |
