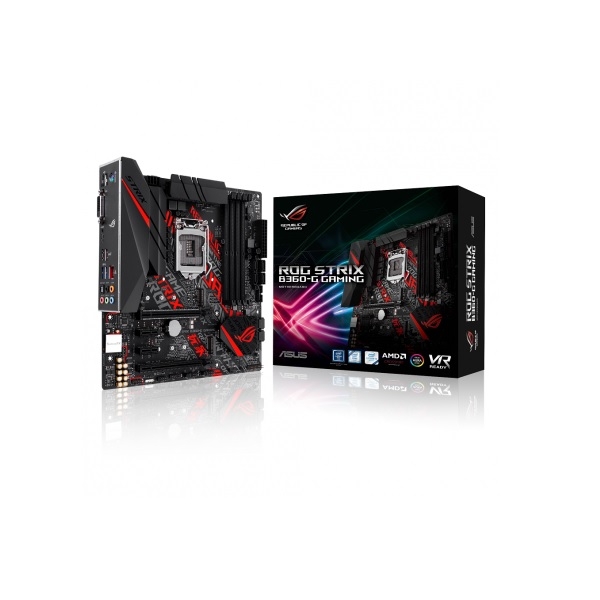

Asus Rog Strix B360-g Gaming Intel B360 Matx Motherboard [90mb0wd0-m0uay0] Asus-90mb0wd0-m0uay0

Rated /5 based on customer reviews

SKU: 262218

Brand: Asus

Manufacturer Link

MPN: ASUS-90MB0WD0-M0UAY0

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $225.00

Special Price $196.00

Buy Now And Earn Reward Points!
Qty:

ASUS ROG STRIX B360-G GAMING LGA1151 (300 Series) DDR4 HDMI DVI M.2 Micro-ATX Motherboard

Designed exclusively for 8th generation Intel Core™ processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2 and Intel Optane™ Memory compatibility
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Gamer’s Guardian hardware-level safeguards provide component longevity and reliability
FanXpert 4 Core allows for dynamic fan calibration and optimized system cooling while gaming
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

AESTHETIC
Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.


Cyber Outlook

Aura Sync

3D Printing Friendly
ROG Strix H370F Gaming
Cyber Outlook

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.

ROG Strix heatsink
DIY FRIENDLY DESIGN
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.


Gamer's Guardian

Certified Compatibility

Easy-to-Use UEFI BIOS

Pre-Mounted I/O Shield

SafeSlot

ESD Guards

Q-SLOT

Q-DIMM

Digi+VRM

DRAM overcurrent protection

Highly durable components

PERFORMANCE
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.


Cooling

Optimization

Storage

Memory
Cooler By Design

ROG Strix B360-G Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 Core or the UEFI BIOS.

ROG Strix B360-G Gaming
Multi temp sources
Multi temp sources

4-pin PWM/DC fan
4-pin PWM/DC fan

AIO Pump
AIO pump fan

Each header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling. All can be easily managed via Fan Xpert 4 Core or UEFI.
AUDIO
Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.


Sonic Studio III

Sonic Radar III

Supreme FX
Sonic Studio III

Intuitive Audio-Tuning Suite

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*Learn more about Sonic Studio III.

Sonic Studio UI
APP-SPECIFIC PROFILES
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

SURROUND SOUND
Surround sound for a truly immersive audio experience.

Sonic Studio Link

New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.

In-game sound effects and music are adjusted automatically to increase the feeling of immersion, so audio pulls you further into the game.GAMING The Voice Clarity and Smart Volume sliders are set high to emphasize dialog, so you'll hear the softest whispers and experience minimum distortion at maximum volume.MOVIE Voice Clarity, Bass Boost and Treble Boost are carefully balanced so your music-listening experience feels like a live performance.MUSIC Soft sounds are accentuated by Smart Volume for enhanced listening, while Voice Clarity boosts speech for crystal-clear conversations.COMMUNICATION Sonic Studio Link applies Sonic Studio III effects to your VR headset, boosting immersion in virtual worlds.VIRTUAL REALITY Easy-to-use routing assigns different audio streams to different outputs, such as browser effects to headphones and game audio to speakers.MULTITASKING
NETWORKING
Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy.


Intel Ethernet

GameFirst IV

LANGuard
Intel Gigabit Ethernet

More Throughput and Less CPU Usage for Great Gaming Experiences

ROG Strix B360-G Gaming features the very latest Intel Ethernet (I219-V) for faster, smoother gaming. Intel's LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for gaming.

Lower CPU workload

High TCP and UDP throughput

ROG Strix
Gives You More
Design, build, tweak and show off your style — with ROG Strix behind you every step of the way.

Model

Brand
ASUS
Series
ROG
Model
STRIX B360-G GAMING

Supported CPU

CPU Socket Type
LGA 1151 (300 Series)
CPU Type
8th generation Intel Core processors
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies
Turbo Boost Technology 2.0
* Intel Turbo Boost Technology 2.0 support depends on the CPU types

Chipsets

Chipset
Intel B360

Onboard Video

Onboard Video Chipset
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI ports
- Supports DVI with max. resolution 1920 x 1200 @ 60Hz
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30Hz
Maximum shared memory of 1024MB

Memory

Number of Memory Slots
4×288pin
Memory Standard
DDR4 2666/ 2400/ 2133
* Due to Intel chipset limitation, DDR4 2666MHz memory frequency is only supported by 8th Generation Intel 6-core processors. Higher memory modules will run at the maximum transfer rate of DDR4 2666MHz.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
1 x PCIe 3.0 x16 Safeslot
1 x PCIe 3.0 x16 slot (max. at x4 mode)
PCI Express x1
2 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s
6 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 modes)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)

Onboard Audio

Audio Chipset
ROG SupremeFX S1220A Codec

Onboard LAN

LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI
HDMI
1 x HDMI 1.4b
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen 2 ports (2 x Type-A [Red])
2 x USB 3.1 Gen 1 ports
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 x Gold-plated audio jacks

Internal I/O Connectors

Onboard USB
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x AAFP connector(s)
1 x 4-pin RGB Header(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x AIO_Pump connector(s) (4-pin)
1 x CPU Fan connector(s) (4-pin)
2 x Chassis Fan connector(s) (4-pin)
1 x Clear CMOS jumper(s)
1 x System panel connector(s)

Physical Spec

Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 8-pin EATX 12V Power connector(s)
1 x 24-pin EATX Power connector(s)

Features

Features
Multi-GPU Support:
Supports AMD 2-Way CrossFireX Technology

Special Features:
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
GPU Boost
ASUS Exclusive Features:
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS Aura lighting control
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Pre-mounted I/O Shield
Fan Xpert 4 CORE

BIOS:
1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, ASUS Secure Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search

Manageability:
WOL, WOR, PXE

Support DVD contents:
Drivers
EZ Update
Anti-virus software (OEM version)
ASUS Utilities

Operating System Support:
Windows 10 64-bit

Packaging

Package Contents
Accessories:
User's manual
1 x (2-in-1) SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix Door Hanger
1 x ROG Strix stickers
1 x CABLE TIE BLACK
Manufacturer: ASUS. ASUS ROG STRIX B360-G GAMING offers an Intel B360 mATX gaming motherboard with Pre-mounted I/O shield, Aura Sync support, RGB LED header, Dual M.2, SATA 6Gbps, USB 3.1, DDR4, HDMI and DVI.

Highlights:

* Aura Sync RGB.
* Advanced cooling.
* Gaming audio, connectivity & networking.

Specifications:

- Socket: 1151.
- Chipset: Intel B360.
- Form Factor: mATX.
- Dimensions: 24.4 x 24.4cm.

Would you like to know more? Check out the full product information page.
