Asus Intel Motherboard Rog Strix B360-i Gaming Socket 1151 B360 Chipset 2x 2666mhz Ddr4 Pci-e 3.0

Rated 4.6/5 based on 1 customer reviews

SKU: 263762

Brand: Asus

Manufacturer Link

MPN: ROG STRIX B360-I GAMING

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $284.00

Special Price $247.00

Buy Now And Earn Reward Points!
Qty:

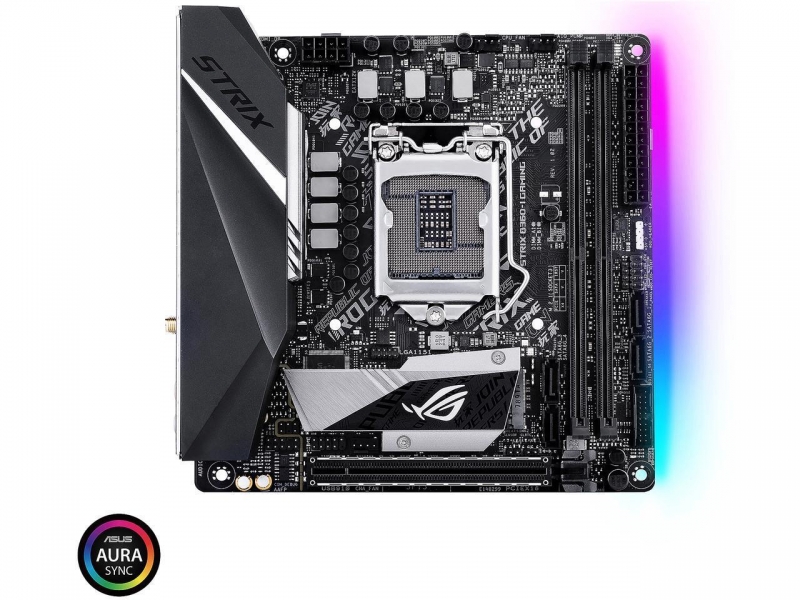

ASUS ROG STRIX B360-I GAMING LGA1151 (300 Series) DDR4 DP HDMI M.2 mini-ITX Motherboard

Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with dual M.2 (1x inside double-decker PCH heatsink, 1x back side), dual Gigabit LAN, onboard 802.11ac WiFi and Intel® Optane™ Memory compatibility
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Gamer’s Guardian with Fan Xpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

AESTHETIC
Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.


Cyber Outlook

Aura Sync

3D Printing Friendly
ROG Strix H370F Gaming
Cyber Outlook

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.

DIY FRIENDLY DESIGN
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.


Gamer's Guardian

Certified Compatibility

Easy-to-Use BIOS

Pre-Mounted I/O Shield

SafeSlot

ESD Guards

Q-SLOT

Q-DIMM

Q-LED

Digi+VRM

DRAM overcurrent protection

Highly durable components

PERFORMANCE
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.


Cooling

Optimization

Storage

Memory
Cooler By Design

ROG Strix B360-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

ROG Strix B360-I Gaming
Multi temp sources
Multi temp sources

4-pin PWM/DC fan
4-pin PWM/DC fan

AIO Pump
AIO pump fan

Each header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling. All can be easily managed via Fan Xpert 4 or UEFI.
AUDIO
Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.


Sonic Studio III

Sonic Radar III

Supreme FX
Sonic Studio III

Intuitive Audio-Tuning Suite

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*Learn more about Sonic Studio III.

Sonic Studio UI
APP-SPECIFIC PROFILES
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

SURROUND SOUND
Surround sound for a truly immersive audio experience.

Sonic Studio Link

New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.

In-game sound effects and music are adjusted automatically to increase the feeling of immersion, so audio pulls you further into the game.GAMING The Voice Clarity and Smart Volume sliders are set high to emphasize dialog, so you'll hear the softest whispers and experience minimum distortion at maximum volume.MOVIE Voice Clarity, Bass Boost and Treble Boost are carefully balanced so your music-listening experience feels like a live performance.MUSIC Soft sounds are accentuated by Smart Volume for enhanced listening, while Voice Clarity boosts speech for crystal-clear conversations.COMMUNICATION Sonic Studio Link applies Sonic Studio III effects to your VR headset, boosting immersion in virtual worlds.VIRTUAL REALITY Easy-to-use routing assigns different audio streams to different outputs, such as browser effects to headphones and game audio to speakers.MULTITASKING
NETWORKING
Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy.


Intel Ethernet

GameFirst IV

LANGuard
Intel Gigabit Ethernet

More Throughput and Less CPU Usage for Great Gaming Experiences

ROG Strix B360-I Gaming features the very latest Intel Ethernet (I219-V) for faster, smoother gaming. Intel's LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for gaming.

Lower CPU workload

High TCP and UDP throughput

Intel Integrated Ultra Wi-Fi support

ROG Strix B360-I Gaming features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5 for connections that are up to 2X faster than ever before, and with up to 4X the range.

* Maximum achievable speed depends on router


ROG Strix
Gives You More
Design, build, tweak and show off your style — with ROG Strix behind you every step of the way.

  • CPU
    Intel® Socket 1151 for 8th Generation Core Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B360
  • Memory
    2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode)
  • Storage
    Intel® B360 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1
    4 x SATA 6Gb/s port(s)
    Intel® Optane™ Memory Ready *2
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Wireless Data Network
    Wi-Fi 802.11 a/b/g/n/ac*3
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
  • Bluetooth
    Bluetooth® 5.0*4
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *5
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III + Sonic Studio Link
  • USB Ports
    Intel® B360 Chipset : *6
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
    Intel® B360 Chipset :
    4 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)
    Intel® B360 Chipset :
    4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Pre-mounted I/O Shield
    Overwolf
    GameFirst IV
    ROG Aura

  • Special Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    AURA :
    - Aura Lighting Control
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    2 x USB 3.1 Gen 2 Type-A,
    2 x USB 3.1 Gen 1 (blue) Type-A + USB Type-CTM,
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
    Anti-surge LAN (RJ45) port
  • Internal I/O Ports
    1 x Aura Addressable Strip Header(s)
    1 x AAFP connector
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Internal speaker connector(s)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x Thermal sensor connector
  • Accessories
    User's manual
    M.2 2242 mounting kit
    2 x SATA 6Gb/s cable(s)
    2 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x Cable ties pack(s)
    1 x Wi-Fi Antenna(s)
    1 x Extension cable for Addressable LED
    1 x Panel cable
  • BIOS
    1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
    ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
  • Manageability
    WOL, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
  • Note
    *1 For a 2242 storage device, use the bundled 2242 mounting kit.
    *2 Only M.2_2 supports Intel® Optane Memory
    *3 Up to 1.73Gbps transfer speed
    *4 Bluetooth V5.0 will be supported on future versions of Windows. Refer to https://www.microsoft.com for updates on Windows OS Bluetooth support version.
    *5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
    *6 Supports 3A power output, one at a time only.
Marketing TextThe distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination to create a personalized gaming with immersion that extends from the inside out.
PI DateMay 2018
Brand NameIntel
Manufacturer Web Sitehttp//www.asus.com
Product TypeMotherboard
Product ModelSTRIX B360-I GAMING
Form FactorMini-ITX
ManufacturerIntel
Processor Socket SupportedLGA1151
Chipset TypeB360
Total No. of Slots2
Memory Type SupportedDDR4
Maximum Memory Capacity32GB
Error CheckingNon ECC
Type/ModelHD Graphics
Audio CardS1220A
Audio Features* Impedance sense for front and rear headphone outputs
* Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Network Card ControllerI219V
Network Card TypeGigabit Ethernet
Network Features* Anti-surge LANGuard
* ROG GameFirst Technology
Other Features* LGA1151 socket: Ready for 8th Gen Intel Core desktop processors.
* Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
* Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
OS SupportedWindows 10
