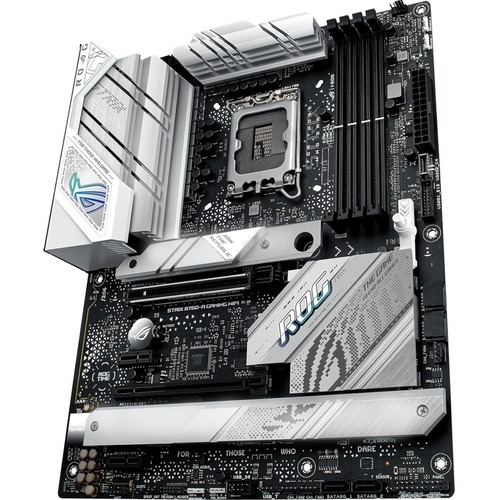

Asus ROG Strix STRIX B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Celeron, Core, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEE ROG
Asus ROG Strix STRIX B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Celeron, Core, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- Supported 10 RAID levels provide data reliability and fault tolerance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- DDR5 SDRAM slot for convenient installation of memory
| Audio Channels | 7.1 |
| Brand Compatibility | Intel |
| Onboard Video | CPU Dependent Video |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of M.2 Interfaces | 3 |
| RAID Levels | 5 |
| 10 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express 5.0 | |
| Total Number of PCI Express Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 5400 MHz |
| 5000 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 5600 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz | |
| 7600 MHz | |
| 4800 MHz | |
| 7800 MHz | |
| 5200 MHz |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | ROG STRIX B760-A GAMING WIFI |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | STRIX B760-A GAMING WIFI |
| Product Name | STRIX B760-A GAMING WIFI Gaming Desktop Motherboard |
| Product Line | Strix |
| Brand Name | Asus ROG |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 9 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| Processor Supported | Pentium Gold |
| Core | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Processor Generation Supported | 13th Gen |
| 13th Gen | |
| 12th Gen | |
| 12th Gen |
