Asus AMD Rog Strix X870-F Gaming WIFI (AM5) Atx Motherboard, DDR5 256GB, PCIe 5.0 X16, 4x M.2, 2x Sata, Wi-Fi 7, 2.5Gb LAN, 2x USB4, 1x HDMI, 1x DP ROG STRIX X870-F GAMING WIFI
SKU
421568
Brand
MPN
ROG STRIX X870-F GAMING WIFI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$719.00
Buy Now And Earn 719 Reward Points!

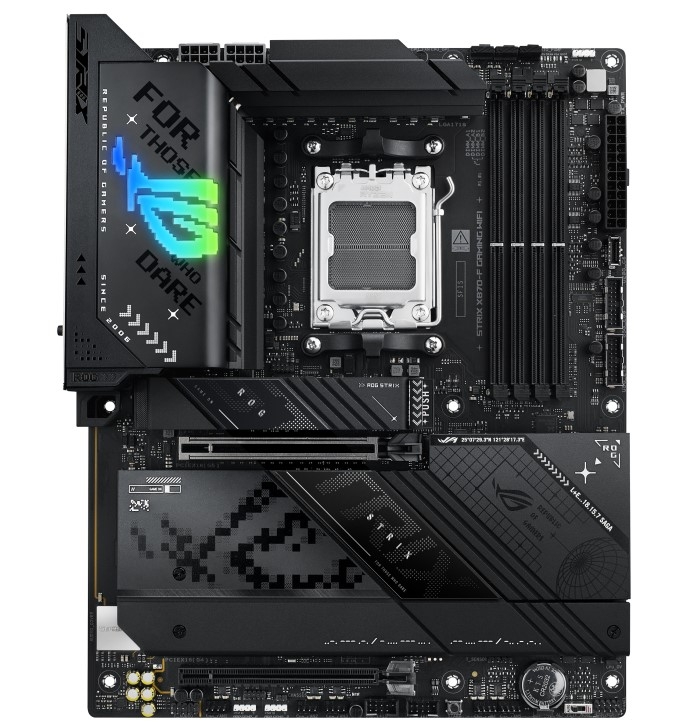

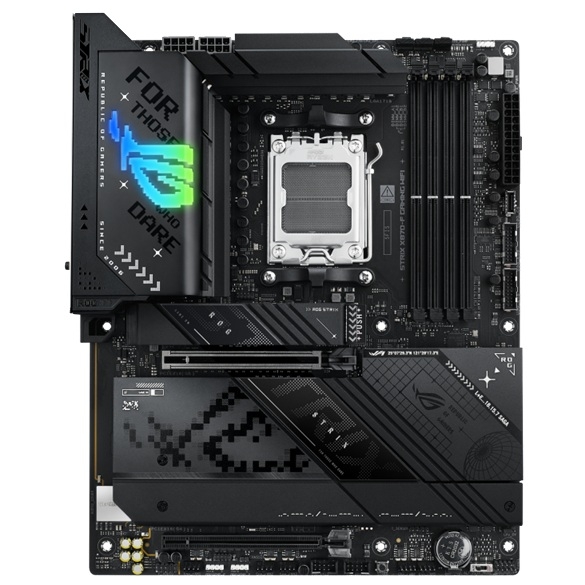

ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard
he ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
* Please refer to AMD CPU
he ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
* Please refer to AMD CPU
| Model | ROG STRIX X870-F GAMING WIFI |
| News & Updates | Socket AM5 |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to 8000+MT/s(OC) with Ryzen™ | 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*" |
| Dual channel memory architecture | Supports AMD Extended Profiles for |
| Overclocking (EXPO™) | ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI™ port*** | 2 x USB4® (40Gbps) ports support USB |
| Type-C® display outputs**** | * Please refer to AMD CPU specifications. |
| ** Supports max. 8K@30Hz as specified in | DisplayPort 1.4. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | AMD Ryzen™ 8000 Series Desktop Processors* |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | AMD X870 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | Storage |
| Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** |
| AMD Ryzen™ 8000 Series Desktop Processors** | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**** | AMD X870 Chipset |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** | M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| 2 x SATA 6Gb/s ports | Ethernet |
| 1 x Intel® 2.5Gb Ethernet | ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)* |
| 2x2 Wi-Fi 7** (802.11be) | Supports 2.4/5/6GHz frequency band*** |
| Supports Wi-Fi 7 320MHz bandwidth | Bluetooth® v5.4**** |
| SB | Rear USB (Total 12 ports) |
| 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)* | 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)** |
| 4 x USB 5Gbps ports (4 x Type-A) | Front USB (Total 9 ports) |
| 1 x USB 20Gbps connector (supports USB Type-C®) | 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | Audio |
| ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* | - Impedance sense for front and rear headphone outputs |
| - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| - Supports up to 32-Bit/384 kHz playback on front panel" | Audio Features |
| - SupremeFX Shielding Technology | - Savitech SV3H712 AMP |
| - Rear optical S/PDIF out port | - Premium audio capacitors |
| - Audio cover | BIOS |
| 256 Mb Flash ROM, UEFI AMI BIOS | Manageability |
| WOL by PME, PXE | Operating System |
| Windows 11 | Form Factor |
| ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 4x M.2, 2x SATA, Wi-Fi 7, 2.5Gb LAN, 2x USB4, 1x HDMI, 1x DP
