- CPUAMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors
Supports CPU up to 32 cores
* Refer to www.asus.com for CPU support list - ChipsetAMD X399
- MemoryAMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1
Quad Channel Memory Architecture - Multi-GPU SupportAMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology - Expansion SlotsAMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
AMD X399 chipset
1 x PCIe 3.0 x4 - StorageAMD Ryzen™ Threadripper™ Processors :
2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2
AMD X399 chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 - LANAquantia AQC-107 10G
Intel® I211-AT
Anti-surge LANGuard
ROG GameFirst Technology - Wireless Data NetworkWi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed - BluetoothBluetooth® 5.0
- AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output 113 dB SNR recording input
- ESS®SABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link - USB PortsAMD Ryzen™ Threadripper™ Processors :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue)
AMD X399 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X399 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X399 chipset :
4 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) - ROG Exclusive FeaturesReTry Button
Start Button
LN2 Mode
Extreme Engine Digi+ :
- IR3555 PoweIRstage®
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ProbeIt
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover - Special Features5-Way Optimization by Dual Intelligent Processors 5
- 5-way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power control, Fan Xpert 4, and Turbo app
LiveDash OLED
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- Clear CMOS Button
- Reset Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector - Back I/O Ports1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)TypeC™
3 x USB 3.1 Gen 2 (red)Type-A
8 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
5 x LED-illuminated audio jacks
1 x Aquantia AQC-107 10G LAN port - Internal I/O Ports1 x WB_SENSOR
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x H_AMP fan connector
1 x W_PUMP+ connector
2 x 8-pin EATX 8 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
7 x ProbeIt Measurement Points
2 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x 14-1 pin TPM connector
1 x Slow Mode jumper(s)
1 x System panel connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x RSVD Switch
1 x 4-Pin HS fan connector - AccessoriesUser's manual
6 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x M.2 screw kit (long screw and mount)
2 x M.2 screw kit (short screw and mount)
1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x ROG Logo Sticker(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x ROG coaster(s)
1 x ROG weave SATA 6G cable
1 x ROG Thank you card - BIOS2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1
- ManageabilityWOL , PXE
- Operating SystemWindows® 10 64-bit
- Form FactorExtended ATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) - Note*1 Please refer to Memory QVL(Qualified Vendors List) for details.
*2 When the M.2 Socket 3 on board is operating in PCIe mode, PCIe 3.0 x16_4 will runs at x4 mode.
*3 Supports PCIE RAID configurations via onboard M.2 storages.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

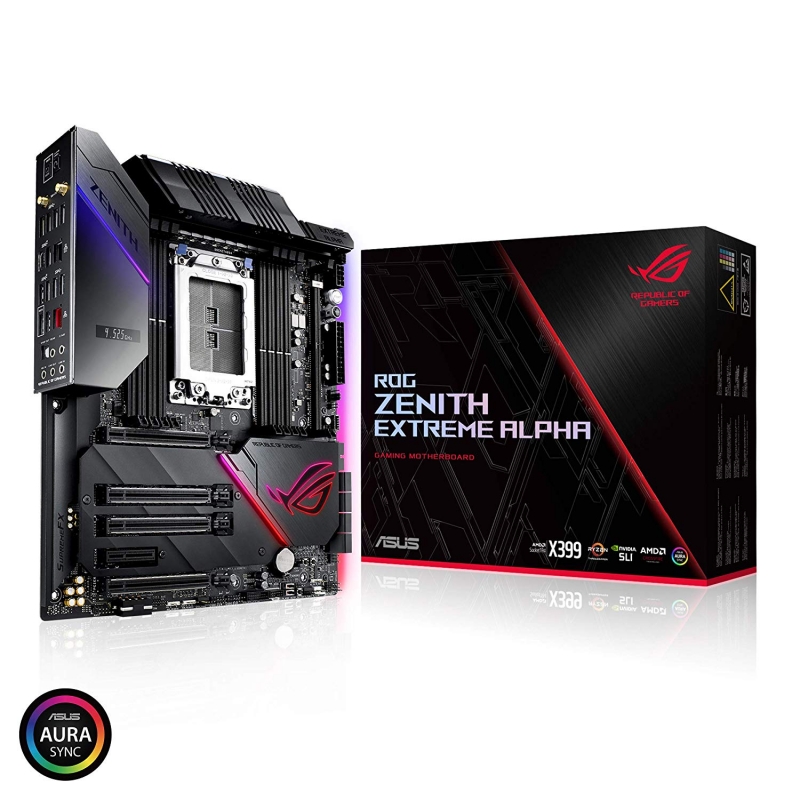

Asus Rog Zenith Extreme Alpha X399 Hedt Gaming Motherboard Amd Threadripper 2 (Tr4) Eatx Ddr4
SKU
273977
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
M.2 10G LAN USB 3.1 Gen2 Rog Zenith Extreme Alpha
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating one of the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality.
Overview
Built to dominate the battlefield for high-end gamers and overclockers, the ROG Zenith Extreme Alpha releases the full might of the 32 core AMD Threadripper processor while keeping thermals under control with intelligent cooling and an SOC heatsink designed especially for the CPU’s monstrous power.
- Designed for 9th generation Intel Core X-Series processors to maximize connectivity and speed with up to four M.2 drives, USB 3.1 Gen 2, Intel VROC and Intel Optane memory compatibility
- Built for high-performance networking featuring onboard Aquantia 10G LAN, 802.11ac WiFi with MU-MIMO support and Intel Gigabit LAN with ASUS LANGuard and GameFirst V technologies
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while thermal sensors/watercooling headers provide dynamic system cooling
- Active heatsink with integrated VRM fan, PCIe-zone M.2 aluminum heatsink, and dual backplates ensure comprehensive system cooling
- Unmatched Personalization with Aura Sync RGB lighting including two RGB headers, one addressable header, and LiveDash OLED
Features
| | | |
|---|---|---|
Performance Level UpAI Suite 3's dashboard-style control panel lets you fine-tune almost every aspect of your Zenith Extreme Alpha system. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface. | DDR4 3600MHZ (O.C.)With support for DDR4 memory you're able to drive memory frequencies to 3600MHz, ASUS-exclusive circuit design, provides superb memory-overclocking potential, minimizing coupling noise and signal reflection to unleash the full power of DDR4. With equidistant memory channels, the ROG design delivers the most balanced control and incredibly powerful overclocking capability. ROG works with almost every DDR4 memory vendor. | Cooler By DesignROG Zenith Extreme Alpha features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI. |
Features (Cont.)
| | | |
|---|---|---|
Intel Integrated Ultra Wi-Fi SupportROG Zenith Extreme Alpha features Intel Wireless AC-9260 Wi-Fi (802.11ac) with 2x2 MU-MIMO and wide 160MHz channel, for wireless speeds of up to 1.73Gbps. In fact, the integrated adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range. | SupremefxThe front-panel headphone output features a SABRE9018Q2C integrated DAC/amp capable of reaching -115dB THD+N to provide playback that convey all the subtlety and nuances of the audio track. The ESS Hyperstream DAC architecture expands the soundstage to give a better sense of positioning. The 121dB DNR provides an extremely low noise-floor, further accentuating dynamics and punch. Our Sonic Studio software provides an array of EQ options. | Asus Aura SyncThe ROG ecosystem is more extensive than ever before, so enjoy greater choice as your system expands. ROG Zenith Extreme Alpha motherboards are equipped with LiveDash — a built-in OLED panel that displays useful information and customizable graphics. Select which system stats to monitor, choose personalized GIFs and images to display. |
