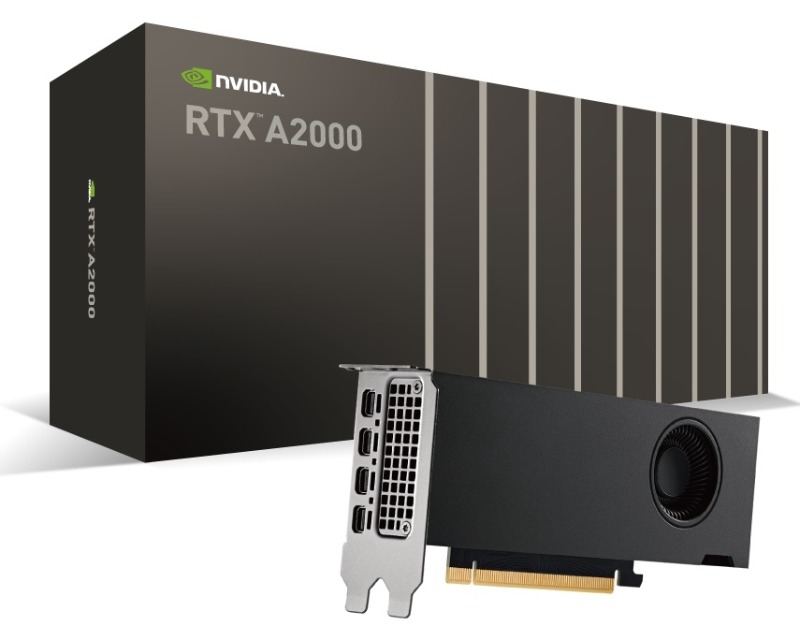

NVIDIA RTX A2000
6 GB GDDR6
Memory interface 192-bit
Memory bandwidth 288 GB/s
Error-correcting code (ECC) Yes
NVIDIA Ampere architecture-
based CUDA Cores 3,328
NVIDIA third-generation
Tensor Cores 104
NVIDIA second-generation
RT Cores 26
Single-precision performance 8.0 TFLOPS2
RT Core performance 15.6 TFLOPS2
Tensor performance 63.9 TFLOPS3
System interface PCI Express 4.0 x16
Power consumption Total board power: 70 W
Thermal solution Active
Form factor 2.7” H x 6.6” L, dual slot
Display connectors 4x mDP 1.4a
with latching mechanism
Max simultaneous displays 4x 4096 x 2160 @ 120 Hz,
4x 5120 x 2880 @ 60 Hz
2x 7680 x 4320 @ 60 Hz
Encode/decode engines 1x encode, 1x decode
(+AV1 decode)
VR ready Yes
Graphics APIs DirectX 12.074,
Shader Model 5.174,
OpenGL 4.685, Vulkan 1.25
