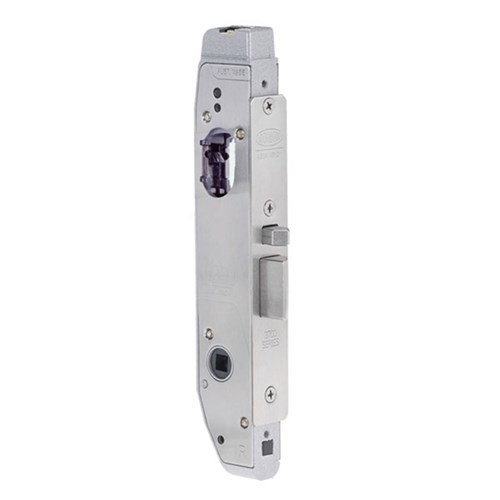

LOCKWOOD S110652 3782EL ELECTRIC MORTICE PRIMARY LOCK 23MM BACKSET 9-28VDC 5YR
Designed and manufactured in Australia the Selector® 3782EL is a high performance electric mortice lock for narrow stile hinged doors. Designed to meet the varying requirements of commercial applications the lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers. These locks comply with building regulations for single-action escape doors.
Key Features
• Variable voltage from 9 – 28VDC
• Simple in field selectable from power to lock to power to open
• Full range of monitoring including REX, Deadlatch, Door position, KOM and lock status
• On board door status LEDs improves installation and reliability
• Unique functions for double reader applications which allows external side to fail securely while internal side fails safe allowing free egress escape
• Motor driven providing lower power usage in some applications
| VOLTAGE | 9 – 28VDC |
| CURRENT | 300mA MAX (20mA continuous if LEDs are activated) |
| MONITORING | Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) and Lock Status (NC) – all 30VDC 50mA MAX |
| ENVIRONMENT | -15 to 60ºC |
| CASE/COVER | High purity zinc alloy material cases with stainless steel chassis plates |
| BACKSET | 23mm |
| CABLING | Supplied with 3.6m cable with 12 pin connector and water deflecting boot |
| RECOMMENDED CABLING | 8AWG (0.82mm²) cable runs up to 30m |
| LATCH BOLTS | Latch bolts are made with stainless steel, 15mm in size Deadlatching is achieved by an auxiliary stainless steel latch bolt Reversible for both left and right hand doors, opening in or opening out whilst lock is in door Separate auxiliary bolt moves into lock case simultaneously with latch bolt Radius bolt provides greater deadlatch throw and smoother closing action |
| DOOR THICKNESS | Metal doors: 35 to 50mm Timber doors: 32 to 50mm Specify Selector® 3782-TFKIT for timber door fixing kit to convert an aluminium fix lock to timber door fixing. The timber door fixing kit includes a long faceplate, strike and screws to suit a timber door and jamb |
| DOOR CLEARANCE | To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. |
| SECURITY | All Selector® 3782EL Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder. |
| DURABILITY | All Selector® 3782EL Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008). |
| ANTI-CORROSION | All Selector® 3782EL Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008). |
| REBATE | Rebate kits to suit 13mm standard rebate are available. Only suitable for use with 30mm and 38mm backset locks. |
| STANDARD FINISHES | Stainless Steel SS |
