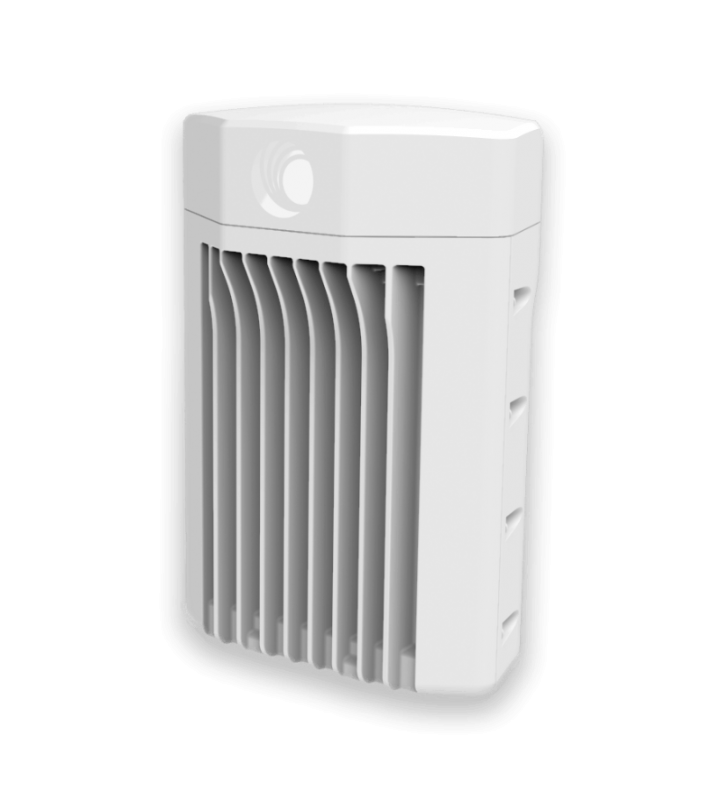

CAMBIUM 60GHZ CNWAVE V5000 DISTRIBUTION NODE 3YR S114635
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to 30 devices, which includes up to four distribution nodes. V5000 can be used for PTP, PMP and mesh configurations.
| Maximum Throughput (uplink /downlink) | 1Gbps for V1000 ; 3.8Gbps for V3000 |
| Frequency Range | 57 to 66 GHz |
| Channel Width | 2.16 GHz, 4.32 GHz (in future release) |
| Peak Gain | 22.5 dBi |
| Input Voltage | Passive PoE (42-57 V) |
| Power Consumption | 65 W with AUX PoE Out in use ; 35 W without AUX PoE Out in use |
| Environmental | IP66/67 |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ 1G and 10G |
| Temperature Range | -40°C to 60°C |
| Weight | 4 kg |
| Encryption | 128-bit AES |
