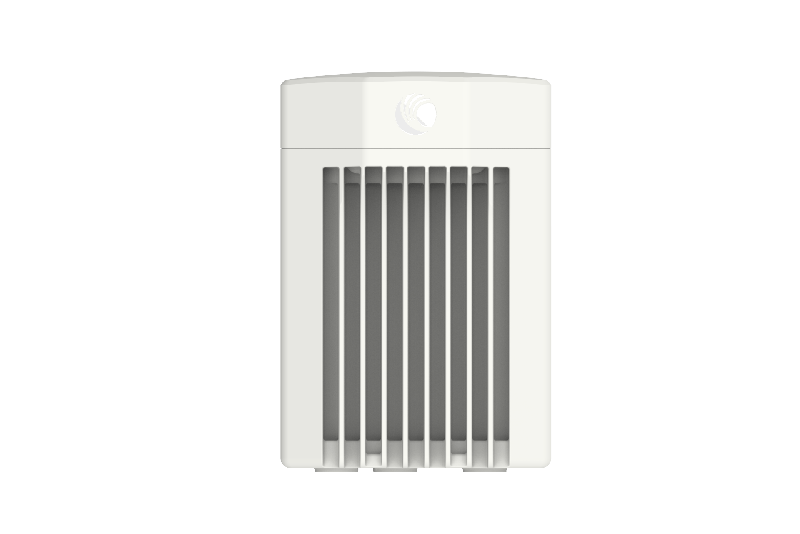

Cambium 60GHZ Cnwave V5000 Distribution Node 3YR S114635
SKU
418979
Brand
MPN
S114635
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,929.00
Buy Now And Earn 1929 Reward Points!
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
V5000 is featured with two sectors covering up to 280º with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP and PMP configurations. Supports Up to 7.2 Gbps (1.8 Gbps DL and 1.8 Gbps UL per sector).
V5000 is featured with two sectors covering up to 280º with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP and PMP configurations. Supports Up to 7.2 Gbps (1.8 Gbps DL and 1.8 Gbps UL per sector).
| Weight | < 4kg |
| Peak Gain | 22.5 dBi |
| Encryption | 128-bit AES |
| Channel Width | 2.16 GHz, 4.32 GHz (in future release) |
| Environmental | IP66/67 |
| Input Voltage | Passive PoE (42-57 V) |
| Frequency Range | 57 to 66 GHz |
| Power Consumption | 65 W with AUX PoE Out in use, 35 W without AUX PoE Out in use |
| Temperature Range | -40°C to 60°C |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ 1G and 10G |
| Maximum Throughput (uplink /downlink) | 1.8 Gbps / 1.8 Gbps per sector |
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
