LOX S114862 ES10 ELECTRIC STRIKE 12/24VDC ANSI STYLE WEATHER RESISTANT IP56 5YR
SKU
403465
Brand
MPN
S114862
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$104.00
Buy Now And Earn 104 Reward Points!

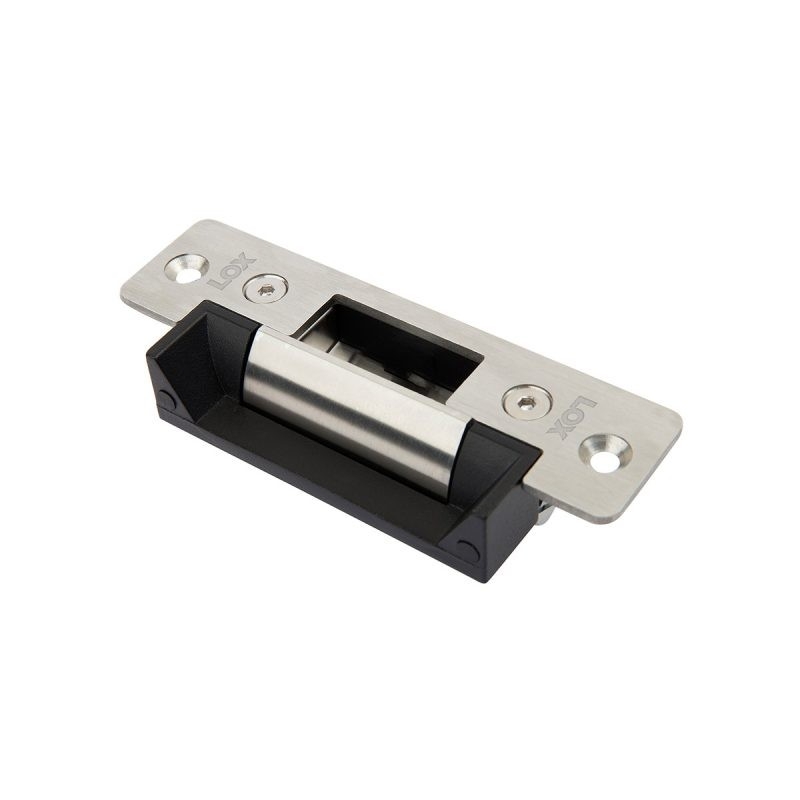

The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock.
The ES10 Series strikes are pre-drilled to accommodate for extension lips and have a holding strength of up to 1200kg.
The non-monitored ES10 version is weather resistant IP56 rated.
| ES10 | ANSI PROFILE NON MONITORED DOOR STRIKE. MORTICE MOUNT, POWER TO LOCK/POWER TO OPEN FIELD SELECTABLE & IP RATED |
| HOLDING STRENGTH | UP TO 1000KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| IP RATING | IP56 |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
