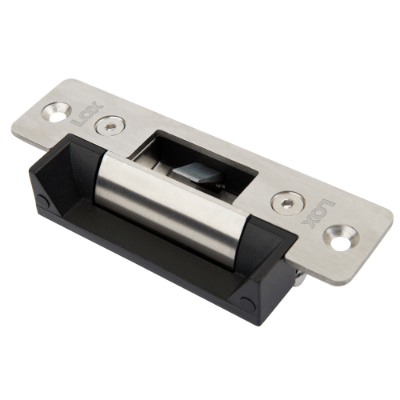

LOX S114863 ES10M ELECTRIC STRIKE 12/24VDC ANSI STYLE MONITORED 5YR
SKU
403467
Brand
MPN
S114863
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$123.00
Buy Now And Earn 123 Reward Points!
The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock.
The ES10 Series strikes are pre-drilled to accommodate for extension lips and have a holding strength of up to 1200kg.
The monitored ES10M version comes with Door Status Sensor (door latch monitoring).
| ES10M | MONITORED VERSION OF THE ES10 NON WEATHER RESISTANT |
| HOLDING STRENGTH | UP TO 1000KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| DSS MONITORING | DOOR LATCH SENSOR, DOOR LATCH ENGAGED WITHIN STRIKE KEEPER ES10M VERSION |
| IP RATING | NOT WEATHER RESISTANT |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
LOX S114863 ES10M ELECTRIC STRIKE 12/24VDC ANSI STYLE MONITORED 5YR
