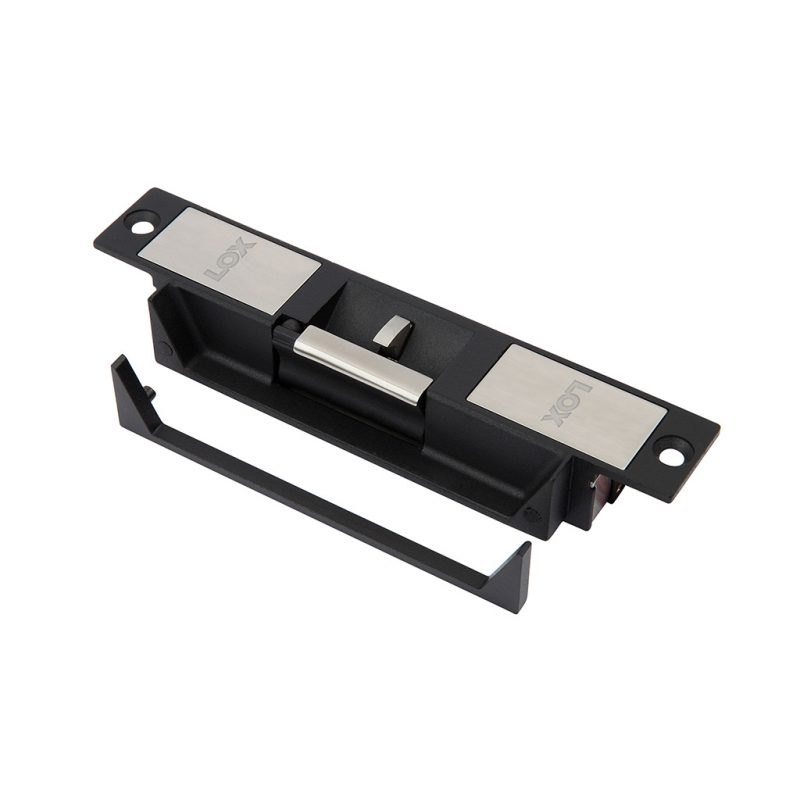

LOX S114870 ES20M HIGH SECURITY ELECTRIC STRIKE 10-30VDC MONITORED 5YR
The LOX ES20 Series high security Electric Door Strikes are one of the most successful commercial Electric Strike products in Australia.
It is manufactured from stainless steel, accepts D.C. Voltages from 10 to 30 VDC and is site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.
The ES20 Series Strikes have a 10mm strike lip as standard. This prevents potential personal injury and damage to clothing as compared to Electric Strikes with a 15mm strike lip. All ES20 Series Strikes are pre-drilled to take extension lips in various sizes. The ES20M Electric Strike is one of the strongest Electric Strikes in its category.
ES20 FACTS:
• 5 year warranty
• Simple Power To Lock/Power To Release interchange
• No loose pins and springs
• 10mm strike lip pre-drilled for extension lips
• Multi-Voltage: 10-30VDC
• Fire rated CE & RCM Approvials
• Superior holding strength
| ES20M | MONITORED VERSION OF THE ES20 |
| HOLDING STRENGTH | UP TO 1100KG |
| VOLTAGE/CURRENT | MULTI VOLTAGE 10—30VDC, 250mA AT 12VDC, 125mA AT 24VDC |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARDS, CE & C-TICK |
| LSS MONITORING | STATUS SENSOR OF THE INTERNAL LOCKING MECHANISM |
| DSS MONITORING | DOOR LATCH SENSOR, DOOR LATCH ENGAGED WITHIN STRIKE KEEPER |
| ATS MONITORING | DOOR STRIKE REMOVED OR REPOSITIONED SENSOR |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
| WARRANTY | 5 YEARS |
