LOX S114881 EM3500FM ELECTRO MAGNETIC FLUSH MAGLOCK SLIM 280KG MON 25YR
SKU
403447
Brand
MPN
S114881
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$170.00
Buy Now And Earn 170 Reward Points!

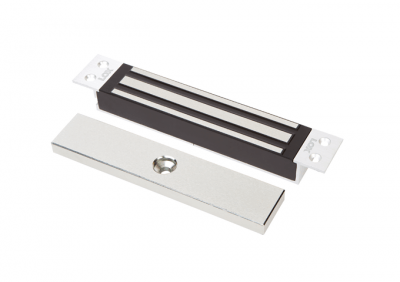

The LOX EM3500M Flush Mount Electro Magnetic Lock was designed for securing single leaf internal sliding doors. The lock is mortised into the door frame and has a holding force of up to 280kg. It has Lock Status Sensor (LSS) monitoring function (Hall-Effect).
EM3500FM FACTS:
• Built-in Hall Effect Sensor for monitoring the lock/unlock status of the locking device (LSS)
• Built-in varistor (MOV) surge protection
• CE/RCM Approvals
• Lifetime warranty
• No residual magnetism
| EM3500FM | FLUSH MOUNT ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH | UP TO 280KG, TESTED TO 400.00 CYCLES |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 500mA 24VDC = 250mA |
| APPROVALS | CE C-TICK |
| LSS MONITORING | LSS LOCK STATUS SENSOR (HALL EFFECT) |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
| WARRANTY | LIFETIME WARRANTY |
LOX S114881 EM3500FM ELECTRO MAGNETIC FLUSH MAGLOCK SLIM 280KG MON 25YR
